Description
High Power Polarization Insensitive/Dependent Isolator-2000nm (2μm)

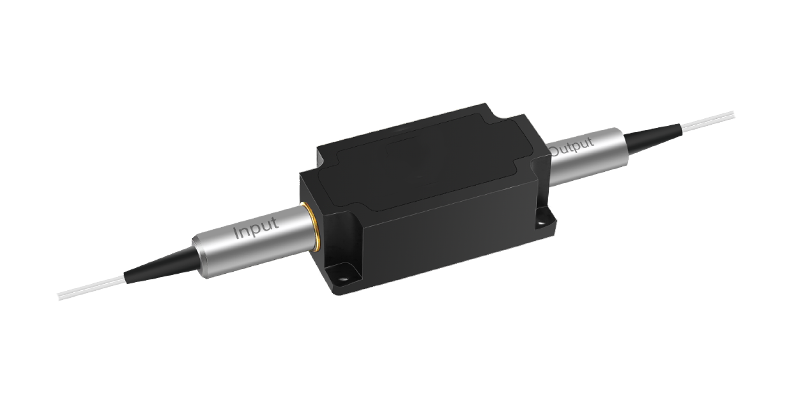

2000nm 10W High Power In Line Optical Isolator
Specifications
| Parameters | Unit | Single Stage | Dual Stage |
| Operating Wavelength | nm | 1940, 1950, 2000, 2050, 2100 | |
| Isolation, λc ± 50 nm, 23 ℃ All Polarization States | dB | ≥16 | ≥35 |
| Insertion Loss, λc ± 20 nm, 23 ℃ All Polarization States | dB | ≤1.2 | ≤1.5 |
| PDL (for Single Mode Fiber) | dB | ≤0.15 | ≤0.2 |
| Extinction Ratio (for PM Fiber) | dB | ≥18 | |
| Return Loss (Input/Output) | dB | ≥50 | |
| Power Handling | W | 1, 2, 3, 5, 10 | |
| Fiber Type | SMF-28e, SM1950, SM2000, PM1550, PM1950, FUD4070 | ||
| Operating Temperature | ℃ | -5 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Dimensions | mm | φ5.5×35, 80x12x10 | |

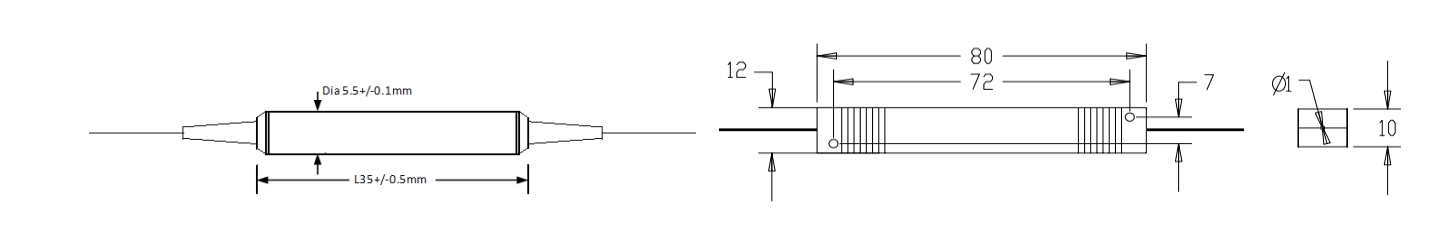

Package Dimensions
Ordering Information
| Type | S=Single Stage; D=Dual Stage; |
| Wavelength | 1940; 1950; 2000; 2050; 2100; |
| Working Axis | 1=Fast Axis Blocked; 2=Both Axis Working; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube |
| Fiber Type | 1=SMF-28e; 9=SM1950; 0=SM2000; P5=PM1550; P9=PM1950; 10=FUD4070; |
| Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other; |
| Power Handling | 1W; 2W; 3W; 5W; 10W; |
| Package Size | 5.5x35; 80x12x10; |
