Description
2000nm Single Mode Fiber Patchcord
2000nm Single Mode Fiber Patchcord
Specifications
| Parameters | Unit | Values | |
| Operating Wavelength | nm | 1950, 2000 | |
| Connector Type | mm | UPC | APC |
| Typ. Insertion Loss | dB | 0.3 | 0.4 |
| Insertion Loss (at 23℃) | dB | ≤0.5 | |
| Fiber Type | SMF-28e or SMF1950 | ||
| PDL | dB | ≤0.1 | |
| Return Loss | dB | ≥50 | ≥60 |
| Power Handling | mW | ≤500 | |
| Operating Temperature | ℃ | -40 ~ +85 | |

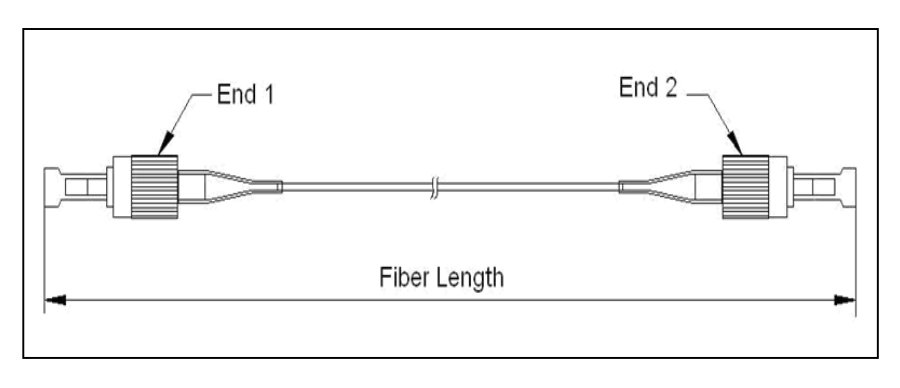

Package Dimensions
| Wavelength | 1950; 2000; |
| Connector (Input) | NE=None;FC=FC/UPC;SC=SC/UPC;FA=FC/APC;SA=SC/APC;LC=LC/UPC;xx=Others; |
| Connector (Output) | NE=None;FC=FC/UPC;SC=SC/UPC;FA=FC/APC;SA=SC/APC;LC=LC/UPC;xx=Others; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | SMF-28e; SMF1950; |
| Length | 1=1m; |
