Description
3-Port Polarization Insensitive Optical Circulator-1940/2000nm(1.94μm/2μm)
3-Port Polarization Insensitive Optical Circulator-1940/2000nm(1.94μm/2μm)
Specifications
| Parameters | Unit | 3 Port |
| Operating Wavelength (λop) | nm | 1940, 2000, 2050, 2100 |
| Isolation (λc±20, 23℃) | dB | ≥20 |
| Insertion Loss (λc±20, 23℃) | dB | ≤1.5 |
| Cross Talk | dB | ≥40 |
| PDL | dB | ≤0.2 |
| Return Loss | dB | ≥50 |
| Average Power | W | 1, 2, 5 |
| Peak Power for ns Pulse | kW | 10 |
| Fiber Type | SMF-28e, SM1950, SM2000 | |
| Operating Temperature (Top) | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimensions | mm | 5.5x50; 90x16x9 |

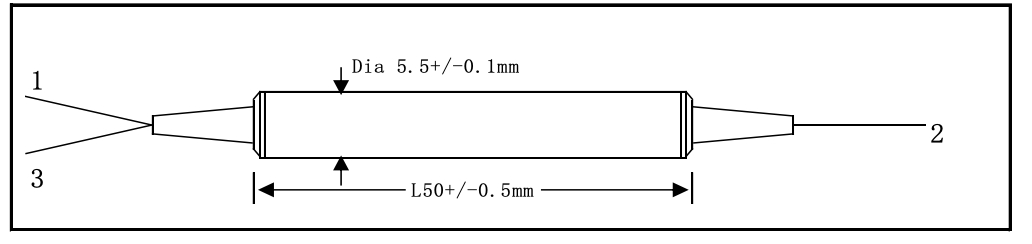

Package Dimensions
Ordering Information
| Port | 3=3 Port |
| Grade | P=P Grade |
| Wavelength | 1940; 2000; 2050; 2100; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; 3mm=3mm Loose Tube; |
| Fiber Type | 1=SMF-28e; 9=SM1950; 0=SM2000; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other; |
| Package Size | 5.5x50; 90x16x9 |
| Handling Power | 1W; 2W; 5W; |
