Description
Filter WDM 1500~2080nm Reflection / 2090~2200nm Pass
Filter WDM 1500~2080nm Reflection / 2090~2200nm Pass
Specifications
| Parameters | Unit | Values |
| Pass Wavelength Range | nm | 2090~2200 |
| Reflect Wavelength Range | nm | 1500~2080 |
| Pass Insertion Loss | dB | ≤1.0 |
| Reflect Insertion Loss | dB | ≤0.7 |
| Pass Isolation | dB | ≥25 |
| Reflect Isolation | dB | ≥15 |
| PER (for PM fiber type) | dB | ≥20 |
| PDL (for SM fiber type) | dB | ≤0.2 |
| Axis Alignment | dB | Both Axis Pass |
| Return Loss | dB | ≥50 |
| Directivity | dB | ≥55 |
| Max Power Handling (CW) | mW | 500 |
| Fiber Type | SMF-28, SM1950, PM1550, PM1950 | |
| Operating Temperature | ℃ | -0 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimensions | mm | φ5.5×L35 |

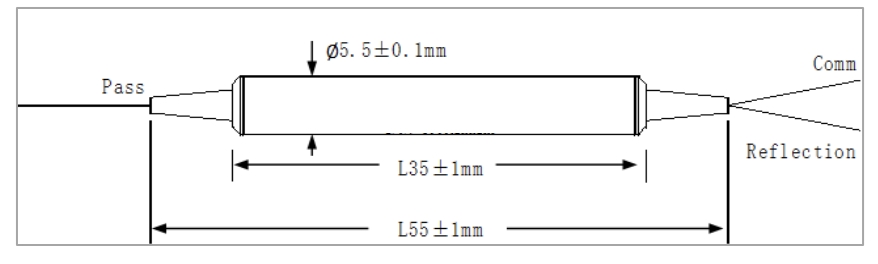

Package Dimensions
Ordering Information
| Port Type | 1x2; |
| Wavelength | 2080R/2090P; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | 1=SMF-28; S9=SM1950; 5=PM1550; P9=PM1950; |
| Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
