Description
PM Fiber 1×2 1560/1850 Filter WDM
PM Fiber 1×2 1560/1850 Filter WDM
Specifications
| Parameters | Unit | Values |
| Pass Band Wavelength | nm | 1850±10 |
| Reflection Band Wavelength | nm | 1560±10 |
| Pass Band Insertion Loss | dB | ≤0.8 |
| Reflection Band Insertion Loss | dB | ≤0.6 |
| Pass Band Isolation | dB | ≥25 |
| Reflection Band Isolation | dB | ≥13 |
| PER | dB | ≥18 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥50 |
| Power Handling | W | 2 |
| Operating Temperature | ℃ | 0 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimensions | mm | φ5.5×L34 |
| Fiber Type | PMF1550 |

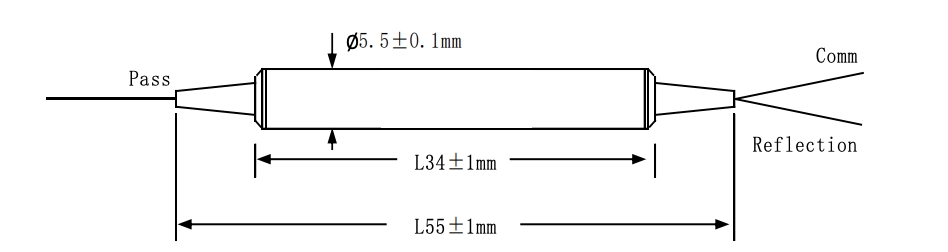

Package Dimensions
Ordering Information
| Port Type | 1x2; |
| Wavelength | 1560R/1850T; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | 5=PM1550; |
| Fiber Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
| Power CW | 2W; |
