Polarization Maintaining Isolator-1940/2000nm (1.94/2μm)

Description

Parameters	Unit	Single Stage	Dual Stage
Operating Wavelength	nm	1940, 2000, 2050, 2100
Isolation, λc ± 50 nm, 23 ℃	dB	≥16	≥35
Insertion Loss, λc ± 20 nm, All Temperature	dB	≤1.2	≤1.5
Extinction Ratio	dB	≥18
Return Loss (Input/Output)	dB	≥50
Power Handling	W	1, 2, 3
Fiber Type		PM1550 or PM1950
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85

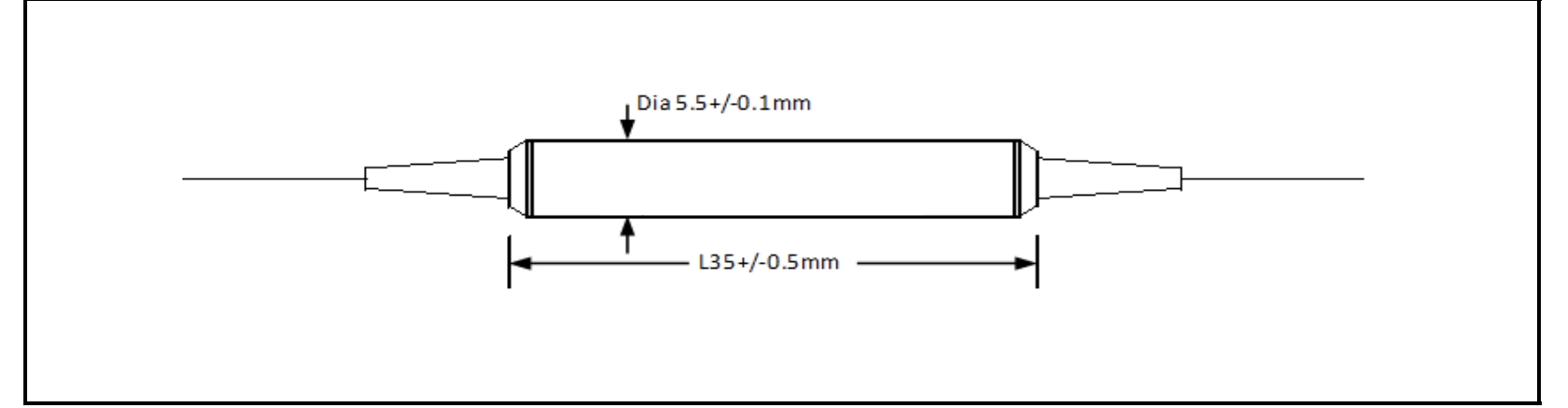

Dimensions	mm	φ5.5×35

Type	S=Single Stage; D=Dual Stage;
Wavelength	1940; 2000; 2050; 2100;
Axis Alignment	F=Fast Axis Blocked; B=Both Axis Working;
Pigtail Type	250=250um Fiber; 900=900um Loose Tube;
Fiber Type	PM1550; PM1950;
Length	1=1m
Connector	NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other
Power Handling	1W; 2W; 3W;
