Description
Features
Low Insertion Loss
High Reliability
RoHS Compliant
Application
Power equalization in WDM Systems
Optical Subsystem
Receiver Protection/Switch
1064nm MEMS VOA
Specifications
| Parameters | Unit | Values |
| Operating Wavelength | nm | 1064+/-10 |
| Attenuation Range | dB | ≥40 |
| Insertion Loss | dB | ≤1.3 |
| Repeatability | dB | ≤0.1 |
| Input Optical Power | mW | ≤500 |
| Driving Voltage (DC) | V | ≤15 |
| Power Consumption | mW | ≤10 |
| Return Loss | dB | ≥45 |
| Fiber Type | HI 1060 | |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimensions | mm | Ф5.5XL18 |

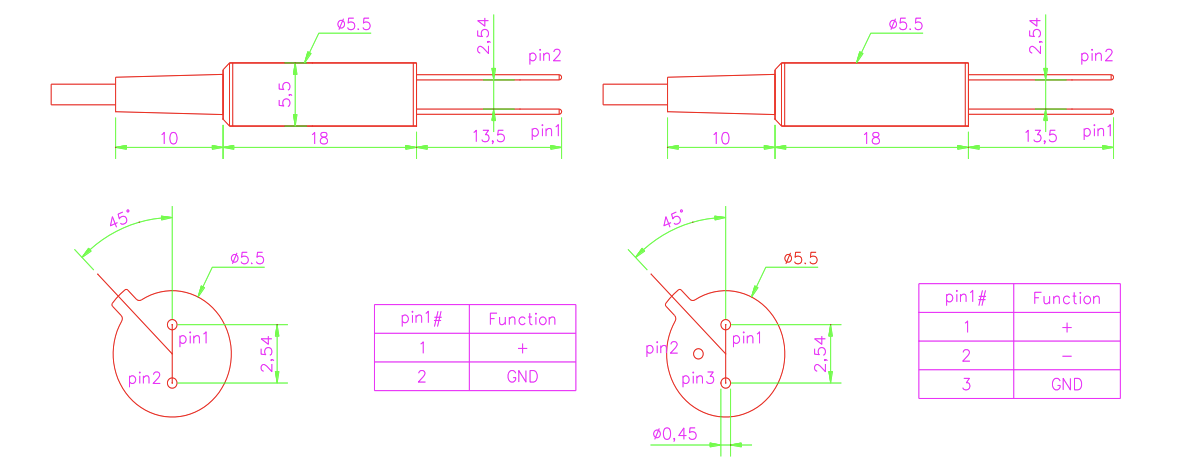

Package Dimensions
Ordering Information
| Type | D=Dark; B=Bright; |
| Wavelength | 1064=1064nm; |
| Attenuation Range | 15=15dB; 20=20dB; 25=25dB; 30=30dB; |
| Operating Voltage | 15V; |
| Pigtail Type | 250=250um Fiber; |
| Fiber Type | 4=HI 1060; |
| Fiber Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
