Description
Features
Wide Analog Bandwidth
Wide Spectral Response(1000~1650nm)
High Quality and Reliability
Application
OADM/OXC/DWDM Power Monitoring
Gain and Power Monitoring in EDFA
High Speed Test Systems
Measurement Instrumentation
InGaAs PIN Pigtail Photodiode
Specifications
| Parameters | Unit | Values | |
| Operating Wavelength | nm | 1260~1620 | |
| Responsivity | VR=5V, λ=1310nm | mA/mW | >0.85 (Typ 0.90) |
| VR=5V, λ=1550nm | mA/mW | >0.90 (Typ 0.95) | |
| Dark Current | nA | ≤0.9 (Typ 0.5) | |
| Capacitance (f=1MHz, case grounded VR=5V, Ee=0) | pF | ≤1.0 (Typ 0.5) | |
| PD Bandwidth @ RL=50ohm,5V 3dB | MHz | ≥2000 | |
| Return Loss | dB | ≥40 | |
| Fiber Type | SMF-28e | ||
| Fiber Length | m | 1.0±0.05 | |
| Fiber Bend Radius | mm | ≥15 | |
| PMD | ps | ≤0.2 | |
| Reverse Voltage | V | ≤20 | |
| Input Optical Power | dBm | ≤10 | |
| Reverse Current | mW | ≤10 | |
| Forward Current | mW | ≤10 | |
| Lead Solder Temperature | ℃ | 260 | |
| Lead Solder Duration | S | 10 | |
| Operating Temperature | ℃ | -40 ~ +85 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Dimensions | mm | Φ7.0x23.9 | |

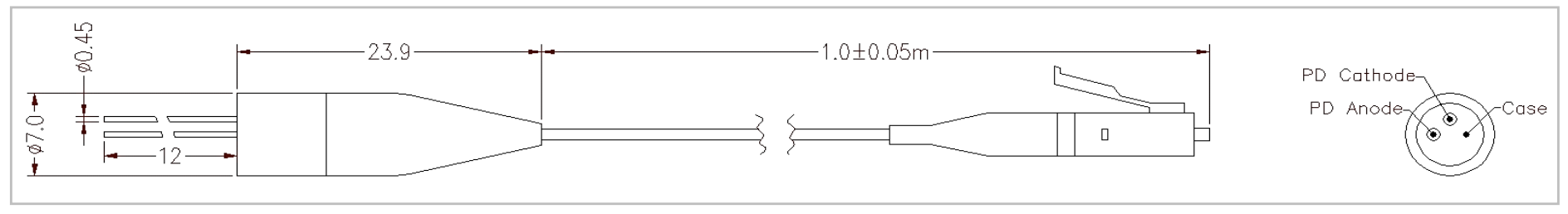

Package Dimensions
Ordering Information
| PIN Type | 0=InGaAs; |
| Package Size | S1=TO-46; |
| Package Type | 1=With Mount Flange; 0=Without Mount Flange; X=Customer Specified; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | 1=SMF-28; |
| Fiber Length | 1= 1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
