Description
Features
Low Insertion Loss
Compact Size, Integrated Device
Customized Tap Ratio Available
RoHS Compliant
Application
WDM Channel Monitoring
Gain Monitoring for Amplifier
Optical Network Switch
Protection Monitoring
Tap Photodiode Monitor 1064nm
Specifications
| Parameters | Unit | Values | ||
| Wavelength Range | nm | 1064±20 | ||
| Tap ratio | 1% | 3% | 10% | |
| Insertion Loss (Without Connector) | dB | ≤1.0 | ≤1.2 | ≤1.3 |
| Min Responsibility | mA/W | 3.5 | 7 | 14 |
| Max Input Power | dBm | 25 | 22 | 19 |
| Dark Current | nA | ≤1.0 (@25℃, 5V bias) | ||
| Reverse Voltage | V | ≤30 | ||
| Forward Current | mA | ≤10 | ||
| Capacitance | PF | ≤6 (VR=-5V, f=1MHz) | ||
| -3dBm Bandwidth | GHz | ≥1.5 (RL=50Ω) | ||
| PDL | dB | ≤0.1 | ||
| PMD | ps | ≤0.1 | ||
| Return Loss | dB | ≥45 | ||
| Fiber Type | HI1060 or 1060XP | |||
| Operating Temperature | ℃ | -10 ~ +70 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
| Dimensions | mm | Ф5.5XL23 | ||

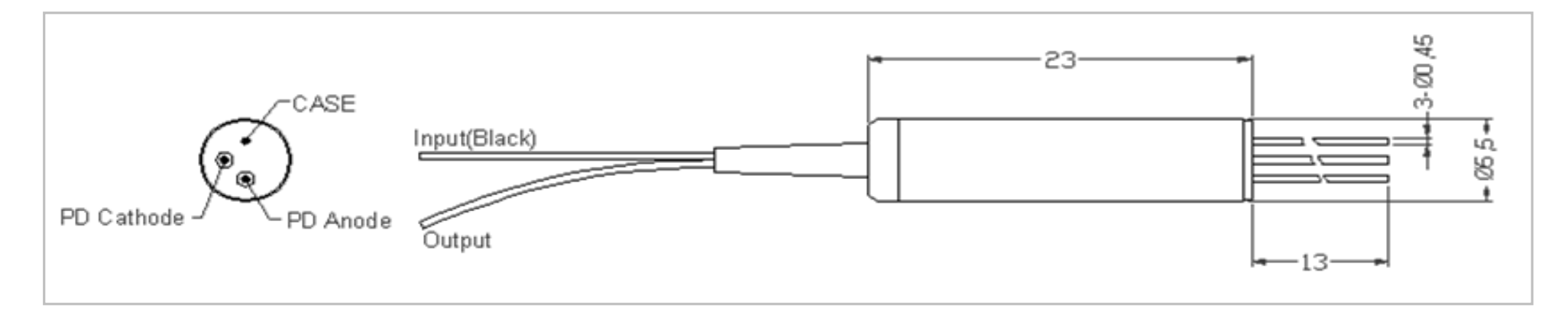

Package Dimensions
Ordering Information
| Wavelength | 1064; |
| Tap Ratio | 1=1%; 3=3%; 10=10%; |
| Pigtail Type | 250=250um Fiber; |
| Fiber Type | 4=HI 1060; 1060XP=1060XP; |
| Fiber Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
| Package Size | 5.5X23; |
