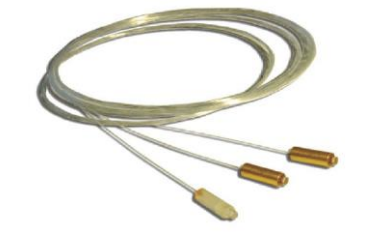

Description
Features
Low IL & High Return Loss
Epoxy Free In Optical Path
Environmental Stability
Application
Isolator, Circulator, FWDM, CWDM
Fiber Collimator (850,980,1064,1310,1550nm)
Specifications
| Parameters | Values | ||||
| Operating Wavelength | 1310, 1550 | 1064 | 980 | 850 | |
| Bandwidth(nm) | ±30 | ±30 | ±20 | ±20 | |
| Working Distance(mm) | 5 or specify | ||||
| Typ. Insertion Loss (dB) | 0.2 | 0.25 | 0.25 | 0.25 | |
| Insertion Loss (dB) | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Return loss(dB) | ≥60 | ≥60 | ≥55 | ≥55 | |
| PDL (dB) | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Optical Power (mW) | ≤500 | ≤300 | ≤300 | ≤300 | |
| Fiber Type | SMF28e | HI1060 | HI1060 | HI780 | |
| Dimension (mm) | 1.8(OD) Lens | 3.2x10 Metal holder or 2.78x9.0 Glass tube | |||
| 1.0(OD) Lens (only 1310,1550nm) |
1.8x7mm Metal holder or 1.4x 7mm Glass tube | ||||
| Operating Temperature(℃) | -5 ~ +70 | ||||
| Storage Temperature(℃) | -40~ + 85 | ||||

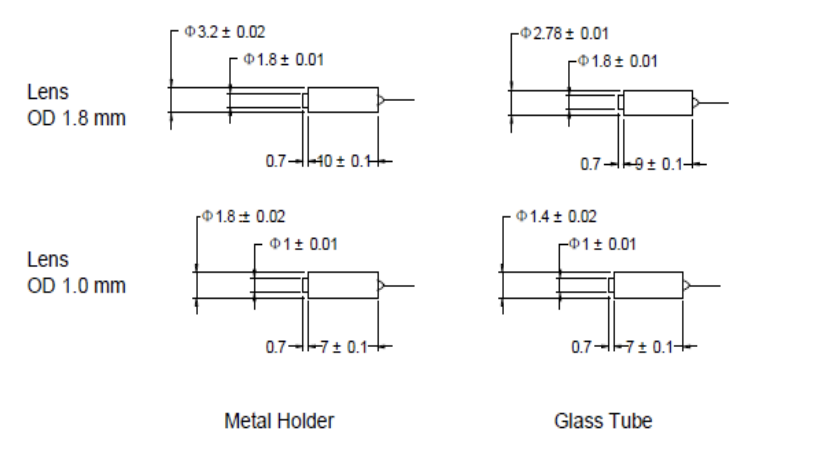

Package Dimension (mm)
Ordering Information
| CL | Type | Wavelength | Lens Diameter | Working Distance | Lens Type | Pigtail Type | Fiber Type | Length | Connector | Package |
| S=Single fiber pigtail D=Dual fiber pigtail |
850 980 1064 1310 1550 |
1.8mm 1.0mm |
5=5mm, X=Specify |
C=C lens G=Grin Lens |
250=250um bare fiber 900=900um loose tube |
1=SMF-28e 4= HI1060 X=Other |
1=1m X=Other |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other |
3.2x10 2.78x9 1.8x7 1.4x7 |
