Description
Features
Low insertion loss
High Crosstalk
Fast response time
Mini Size
Applications
Optical Reconfiguration
Instrumentation
Provisioning
1×8 MEMS Optical Switch
Specifications
| Parameters | Single Mode | Multimode |
| Wavelength range (nm) | 1240~1640 | 700~1700 |
| Insertion loss (dB) | ≤2.0 (Typ 1.2) | ≤2.0 (Typ 1.5) |
| Polarization dependent loss (dB) | ≤0.12 | ≤0.20 |
| Return Loss (dB) | ≥ 44 (Typ 55) | ≥ 35 (Typ 45) |
| Cross talk (dB) | ≥ 60 (Typ 75) | ≥ 45 (Typ 55) |
| Switch speed (ms) | ≤1, (Typ 0.5) | ≤20, (Typ 2) |
| Durability (cycles) | no wear out | no wear out |
| Fiber type | SMF-28e | 50/125, 62.5/125 MM |
| Operating Voltage (V) | <5 | <5 |
| Power Consumption (mW) | Typ 40 | Typ 40 |
| Operation temperature(℃) | 0~70 C | 0~70 C |
| Storage temperature (℃) | -40~85 | -40~85 |

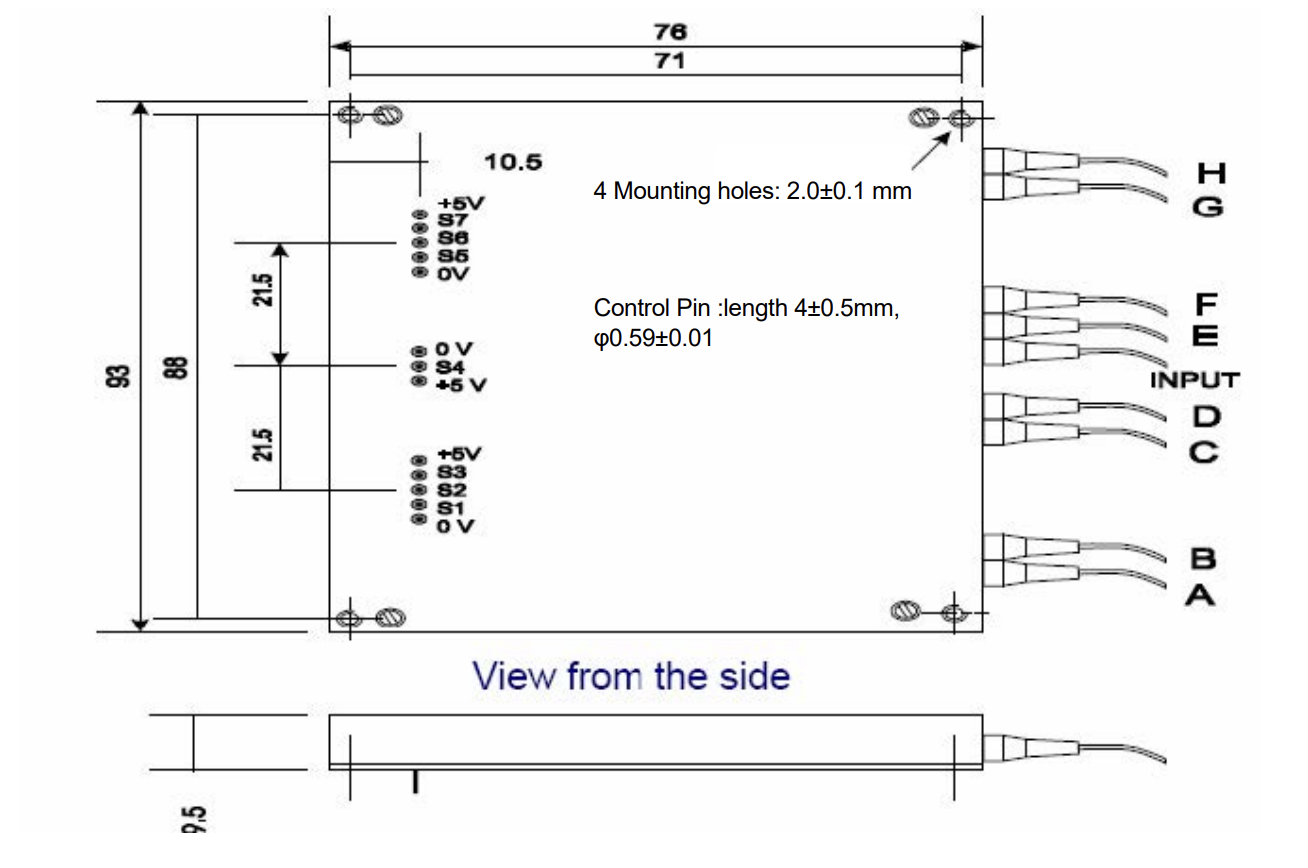

| Package Size (L x W x H) (mm) | 76 x 93 x 9.5 | 76 x 93 x 9.5 |
PIN Connection
| S1 | S2 | S3 | S4 | S5 | S6 | S7 | Port |
| 0 | 5 | X | 5 | X | X | X | A |
| 5 | X | 0 | 5 | X | X | X | B |
| 5 | X | 5 | 5 | X | X | X | C |
| 0 | 0 | X | 5 | X | X | X | D |
| X | X | X | 0 | 0 | 0 | X | E |
| X | X | X | 0 | 5 | X | 5 | F |
| X | X | X | 0 | 5 | X | 0 | G |
| X | X | X | 0 | 0 | 5 | X | H |
0 = 0 V (TTL or CMOS Level)
5 = 5 V (TTL or CMOS Level)
X = 0 V or 5V
Ordering Information
| MSW | Port Type | Wavelength | Mode | Pigtail Type | Fiber Type | Length | Connector |
| 1x8 | 1240~1640 700~1700 |
N=Non-Latching | 900=900um loose tube |
1=SMF-28e 2=50/125 3=62.5/125 |
1=1.0m | NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC ST=ST/PC LC=LC/UPC XX: Specify |
