Description
Features
Compact Size
Fast Response Time
TTL or CMOS Logic
Applications
Protection Switching
Reconfiguration
Logic Optical Subsystems
Array Integration
2×1(1×1,2×2) MEMS Optical switch
Specifications
| Parameters | Unit | Single Mode | Multimode |
| Operation Wavelength | nm | 1240~1640 | 600~1700 |

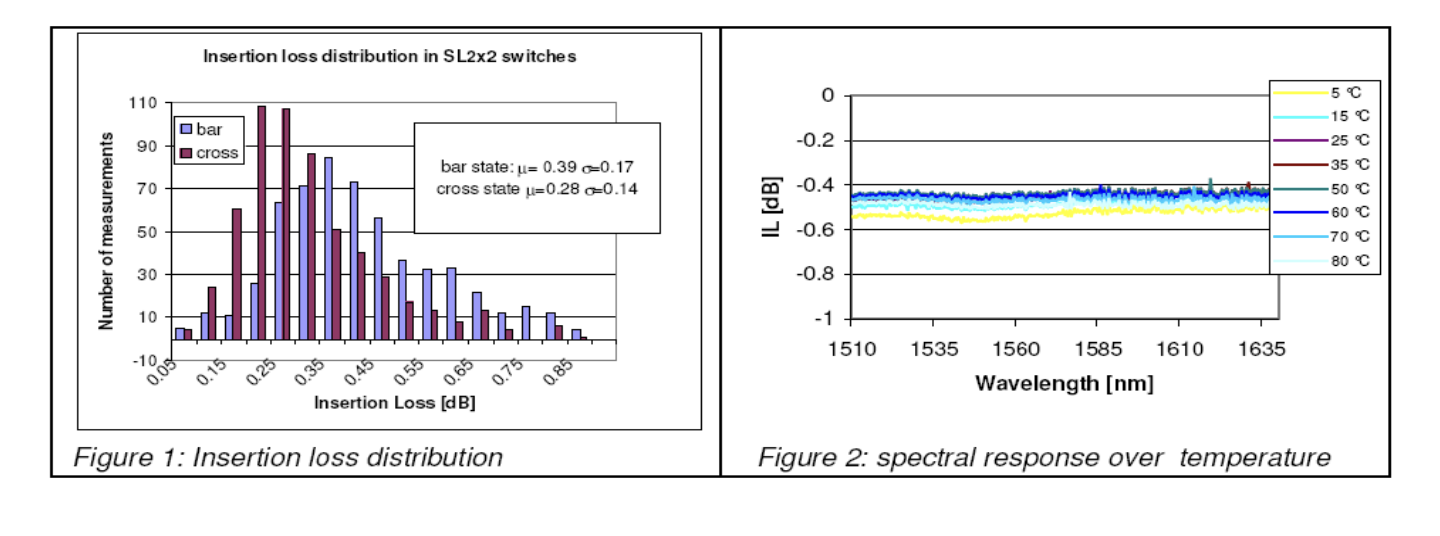

| Insertion Loss | dB | ≤1.0 (Typ 0.4) | ≤1.2 (Typ 0.4) |
| Polarization Dependent Loss | dB | ≤0.07 | ≤0.15 |
| Return Loss | dB | ≥ 50 (Typ 55) | ≥ 30 (Typ 40) |
| Cross Talk | dB | ≥ 60 (Typ 75) | ≥ 40 (Typ 60) |
| Switch Speed | ms | ≤1, (Typ 0.5) | ≤20, (Typ 2) |
| Repeatability | dB | ≤0.002 | ≤0.005 |
| Durability | cycles | No wear out | No wear out |
| Fiber Type | SMF-28e | 50/125, 62.5/125 MM | |
| Operating Temperature | ℃ | 0 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |

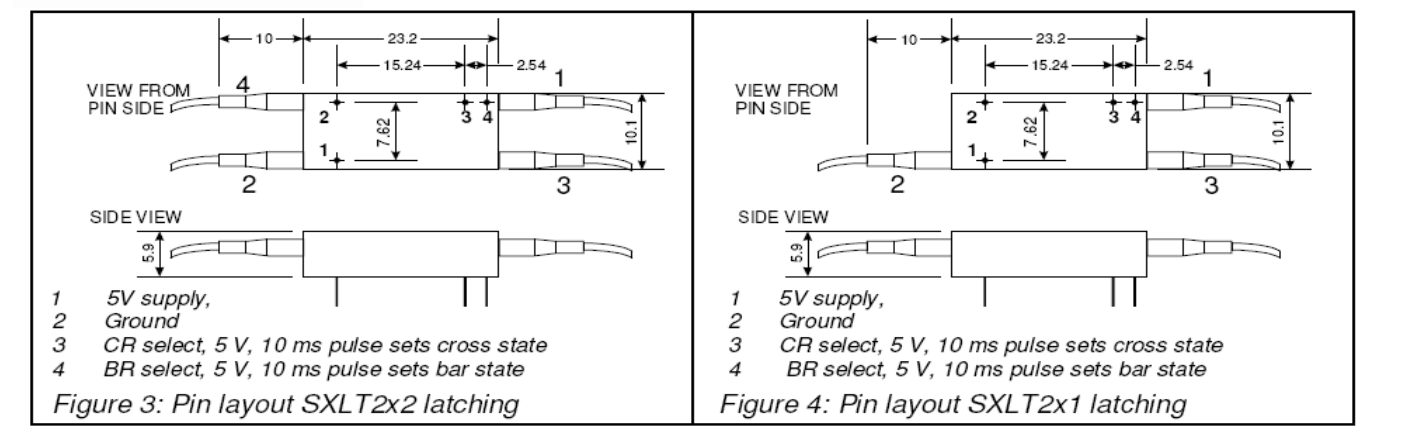

| Dimensions (LxWxH) | mm | 23.2 x 10.1 x 5.9 | |

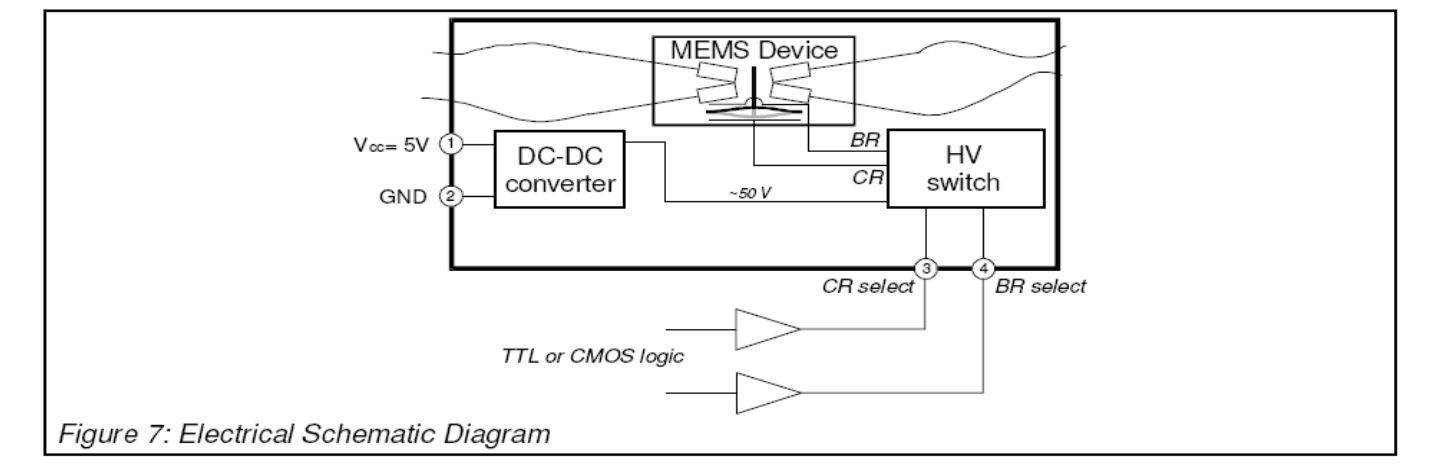

Integrated Drive
| Supply Voltage Vcc (PIN 1) | V | 3.2 ~ 5.25 (Typ. 3.3 or 5.) |
| Current Consumption Lcc (PIN 1) | mA | ≤45, (Typ. 1) |
| Logic Level Low(PINS 3,4) | V | 0.3 |
| Logic Level High(PINS 3,4) | V | 3 |
| Selection Pulse Width | ms | ≥2. Typ 10 |
Ordering Information
| Port Type | 2x1; 1x1; 2x2 |
| Wavelength | 1240~1640; 600~1700 |
| Mode | L=Latching; N=Non-Latching |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube |
| Fiber Type | 1=SMF-28e; 2=50/125; 3=62.5/125 |
| Fiber Length | 1= 1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
