All Fiber Structure, Simple Operation, High Reliability
Based on Theory of Stress-Induced Birefringence
Equal to λ/2 and λ/4 Optical Wave Plate
Complete Coverage of the Poincare Sphere
Low Loss, Wide Operating Wavelength
Well-Made, Competitive Price
Easy Top-Down Fiber Loading with Paddles
Coherent Optical Fiber Communication Systems
Fiber-Optic Gyroscope
Coherent Detection
Optical Fiber Transmission System
Optical Fiber Sensor
PDL Measurement
| Parameters | Unit | Values | |||
| Operating Wavelength | nm | 1260~1625 | 1064, 980 | 850, 780 | 518 |
| Fiber Type | nm | SMF-28e Ultra | HI1060 | HI780 | HP460 |
| Number of Paddles | pc | 3 | |||
| Loop Diamter for Standard Size | mm | 56 | |||
| Loop Diamter for Compact Size | mm | 27 | |||
| Paddle Rotation | Deg | ±117.5 | |||
| Cladding Diameter | μm | 125±0.7 | |||
| Coating Diameter | μm | 242±5 | |||
| Bend Loss | dB | ≤0.1 | |||
| Operating Temperature | ℃ | -10 ~ +75 | |||
| Storage Temperature | ℃ | -40 ~ +85 | |||
| Wavelength | 1310; 1550; 1064; 980; 850; 780; 518; |
| Pigtail Type | 250=250μm Bare Fiber; 900=900μm Loose Tube; XX=Specify; |
| Connector Type | FC=FC/UPC; FA=FC/APC; XX=Specify; |

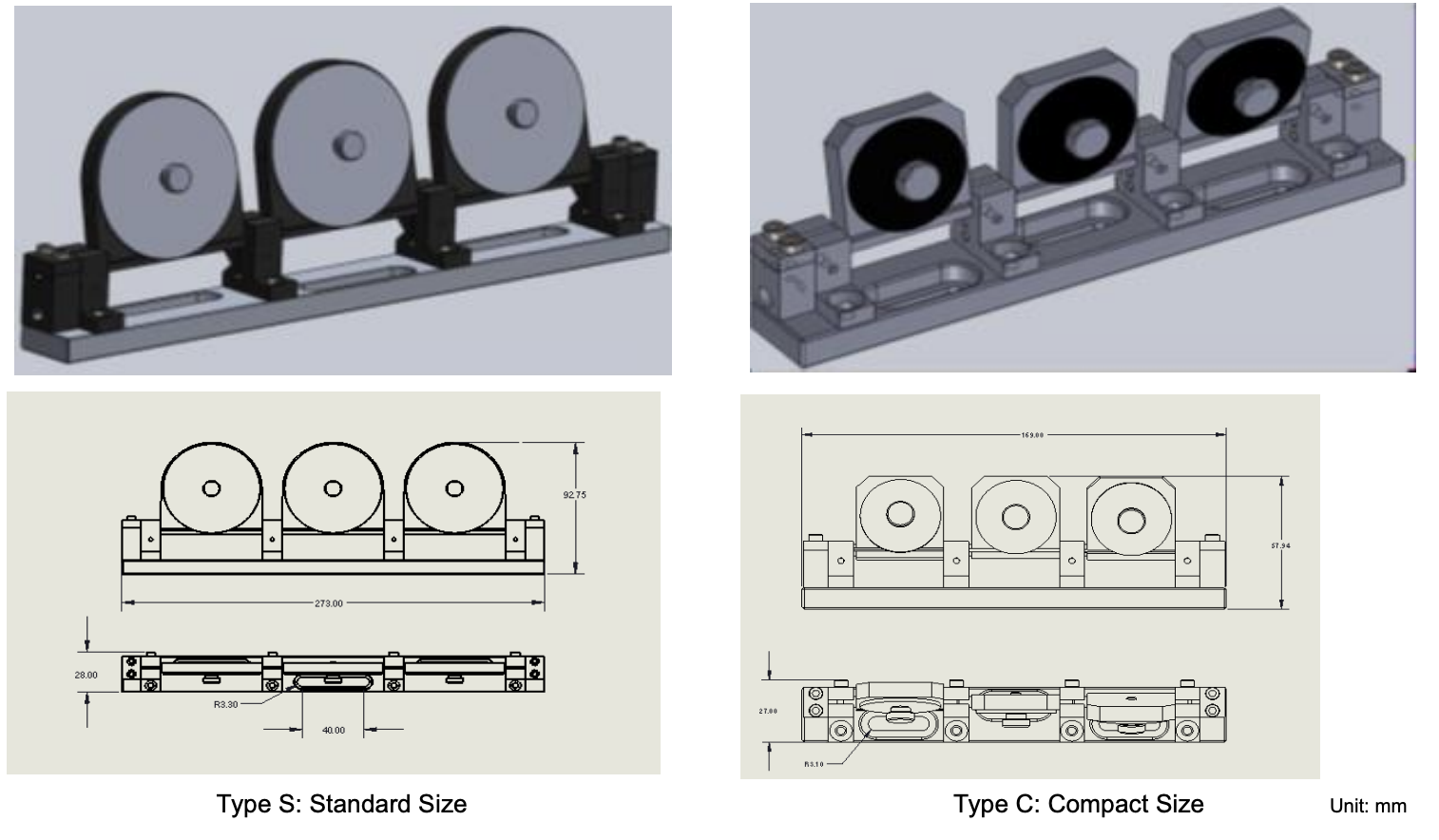

| Package Type | S=Standard Size; C=Compact Size; |
