Description
Features
Low Insertion Loss
High Repeatability
Compact Size
Application
OTDR Test
Telecommunication
Fiber Launch Cable
Specifications
| Parameters | Unit | Values | |
| Connector Type | FC,SC,ST, LC | ||
| Operating wavelength | nm | 1310/1550/1625 | |
| Insertion Loss | 150~1000m | dB | ≤0.25 |
| 1500~2000m | dB | ≤0.50 | |
| Return Loss | APC | dB | ≥60 |
| UPC | dB | ≥50 | |
| Repeatability | dB | ≤0.1 | |
| Fiber Type | dB | SMF-28e; OM2; OM3; OM4, MMF62.5 | |

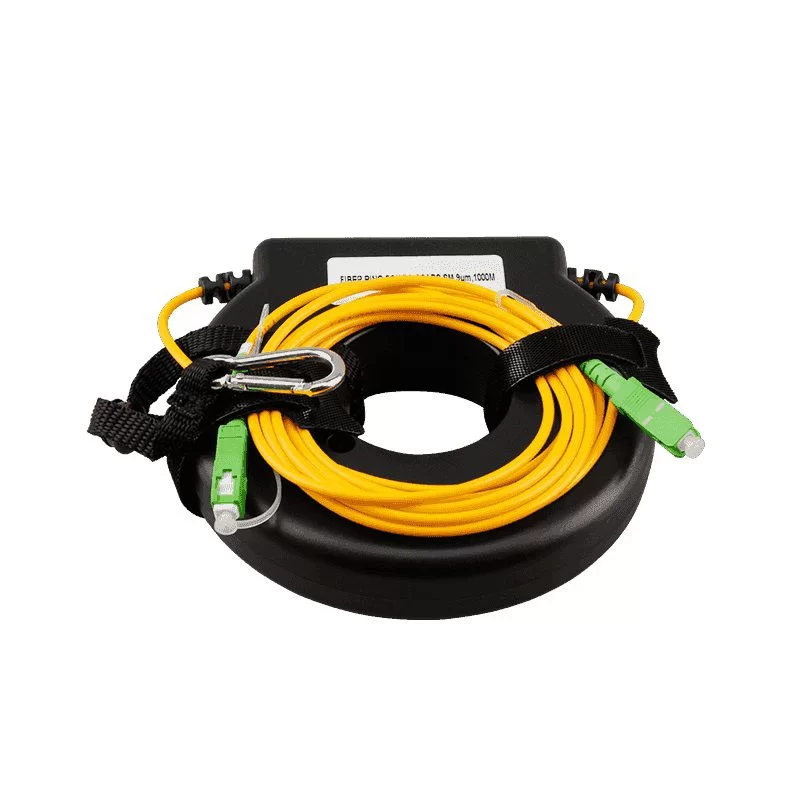

| Package Size | Ring Type for 150~1000m | mm | 101x16 |
| Box Type for 1500~2000m | mm | 190x140x38 | |
| Operating Temperature | ℃ | 0 ~ +85 | |
Ordering Information
| Connector 1 | FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; ST=ST/UPC; XX=Others; |
| Connector 2 | FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; ST=ST/UPC; XX=Others; |
| Test Wavelength | 1310; 1550; 1625; |
| Pigtail Type | 3000C=3mm loose tube; |
| Fiber Type | 1=SMF-28e; OM2; OM3; OM4; 3=MMF 62.5/125; |
| Fiber Length | 150=150m; 500=500m; 1km; 1.5km; 2km; XX=Others; |
| Package | R=Ring Type; B=Box Type; |
