Description
Features
Low Insertion Loss
High Repeatability
Application
LAN, Data network
CATV Network
Telecommunication

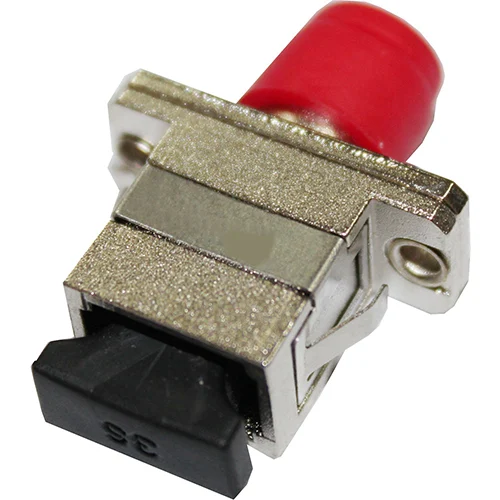

Hybrid Adapter
Specifications
| Insertion Loss | ≤0.2 dB |
| Plug and unplug force (g/f) | 200-600 |
| Durability | 1000times |
| Operating Temperature | -40℃ to +75℃ |
| Part Number | Description | Photo |
| AD-LC/FC-SP01 | LC/UPC FC/UPC Metal Adapter |
 |
| AD-LC/SC-SP02 | LC/UPC-SC/UPC Adapter |  |
| AD-FC/SC-SP03 | FC/UPC-SC/UPC adapter with square flange |
 |
| AD-FC/SC-SP04 | FC/UPC -SC/UPC Adapter with rectangular flange |
 |
| AD-FC/SC-SP05 | FC/UPC -SC/UPC Duplex adapter |
 |
| AD-FC/ST-SP06 | FC/UPC -ST Adapter with rectangular Flange |
 |
| AD-FCF/SCM | FC/UPC Female SC/UPC male |
 |
| AD-FAF/SAM | FC/APC FemaleSC/APC male |  |
| AD-SC/ST-SP07 | SC-ST Adapter |  |
| AD-SC/ST-SP08 | SC-ST Duplex adapter |  |
| AD-FCF/LCM/SM-SP01 | FC/UPC Female to LC/UPC Male single mode adapter |
 |
| AD-FCF/LCM/MM-SP02 | FC /UPC Female to LC/UPC Male Multi- mode adapter |
 |

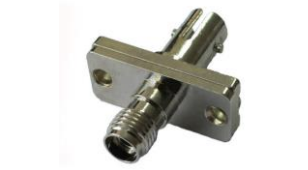

| AD-FCF/SMAF/SM-SP01 | FC/UPC Female to SMA/Female Single mode adapter |
 |
| AD-FCF/SMAF/SM-SP02 | FC/UPC Female to SMA/Female Single mode adapter |
 |
| AD-STF/SMAF/SM-SP03 | ST/Female to SMA/Female Single mode adapter |
 |
| AD-STF/SMAF/SM-SP04 | ST/Female to SMA/Female Single mode adapter |
 |

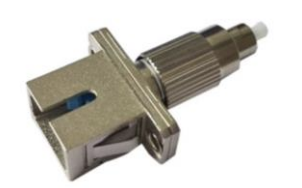

| AD-FCM/SCF/SM-SP01 | FC/UPC Male to SC/UPC Female Single mode adapter |
 |
