Wavelength Division Multiplexer Coupler-1064/1310nm
1064/1310nm WDM Coupler
Specifications
| Parameters | Unit | 1064/1310 WDMC | ||
| Grade | P | A | ||
| 1064+/-15nm | Insertion Loss | dB | ≤0.3 | ≤0.4 |
| Isolation @1310+/-15nm | dB | ≥17 | ≥16 | |
| PDL | dB | ≤0.10 | ≤0.15 | |
| 1310/-15nm | Insertion Loss | dB | ≤0.3 | ≤0.4 |
| Isolation @1064+/-15nm | dB | ≥17 | ≥16 | |
| PDL | dB | ≤0.10 | ≤0.15 | |
| Return Loss | dB | ≥50 | ≥45 | |
| Handling Power | W | 5 | ||
| Operating Temperature | ℃ | -40 ~ +85 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
Package Information
| Configuration | 1x2, 2x2 | ||
| Fiber Length | 1m, others on request | ||
| Fiber Type | HI 1060 or HI 1060 Flex | ||
| Pigtail type | 250μm Bare Fiber | 900μm Loose Tube | 900μm/2mm/3mm Loose Tube |
| Dimensions (mm) | φ3.0x54 | φ3.0x54 | 90x16x9 |

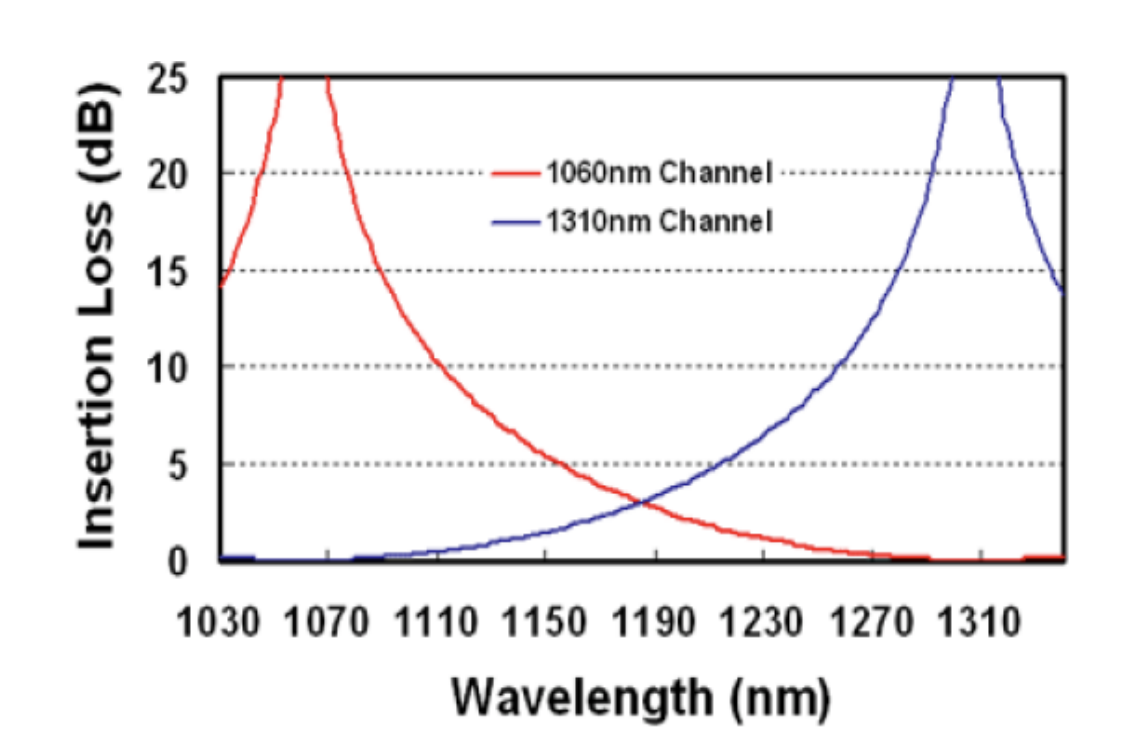

Typical Spectrum
Ordering Information
| Grade | P=Grade P; A=Grade A; |
| Wavelength | 1064/1310; |
| Port | 1x2; 2x2; |
| Pigtail Type | 250=250µm Fiber; 900=900µm Loose Tube; 2mm=2mm loose tube; 3mm=3mm Loose Tube; |
| Fiber Type | HI 1060; HI 1060 FLEX; |
| Length | 1= 1m; X=Other; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
| Package | 3x54; 90x16x9; |
