Description
Features
Low IL & Low PDL
High Isolation
High stability and reliability
Application
EDFA
Fiber Laser
R & D Lab.

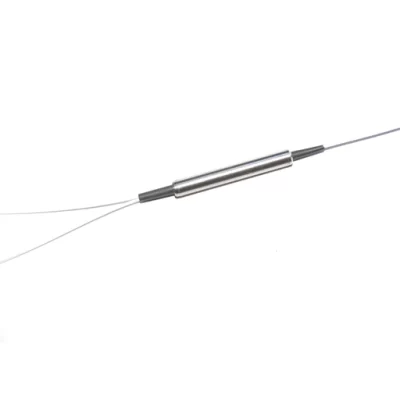

980/1030,980/1060nm WDM coupler
Specifications
Insertion loss (dB)≤0.3≤0.4
| Parameter | 980/1064 or 980/1030 WDMC | |||||
| Operating wavelength (nm) | 980 and 1064; 980 and 1030; |
|||||
| Operating bandwidth (nm) | ±5 | |||||
| Grade | P | A | ||||
| Isolation (dB) | ≥15 | ≥13 | ||||
| PDL(dB) | ≤0.10 | ≤0.15 | ||||
| Directivity (dB) | ≥55 | |||||
| Operating temperature (℃) | -40 ~ +85 | |||||
Package Information
| Configuration | 1x2 or 2x2 | |
| Fiber length | 0.8m, others on request | |
| Fiber Type | Corning HI1060flex or HI1060 | |
| Pigtail type | 250μm bare fiber | 900μm loose tube |

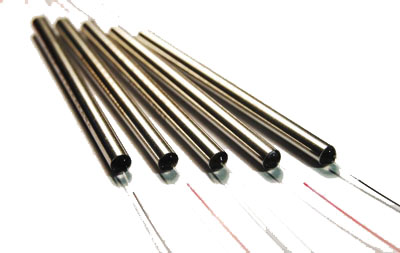

| Dimensions(mm) | φ3.0×60 | φ3.0×60 |
Ordering Information
| WDMC | Grade | Wavelength | Port | Pigtail Type | Fiber Type | Length | Connector | Package |
| P A |
980/1064 980/1030 |
12=1x2 22=2x2 |
250=250um bare fiber 900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
4=HI1060FLEX X=HI1060 |
0.8=0.8 mX:other |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC MU=MU/UPC XX=Other |
3x60 …. |
