Red, Green, Blue Combiner

Description

Parameters	Unit	Values
Center Wavelengths (λc)	nm	635 (R)/532 (G)/488 (B) or Specify
Insertion Loss, Red, Green, Blue Input to Output, λc	dB	≤1.2 (Typ. 0.8)
Thermal Stability	dB/℃	≤0.005
Directivity	dB	≥50
Return Loss	dB	≥50
Power Handling	mW	100
Fiber Type		Nufern 460-HP Fiber
Operating Temperature	℃	-40 ~ +85
Storage Temperature	℃	-40 ~ +85

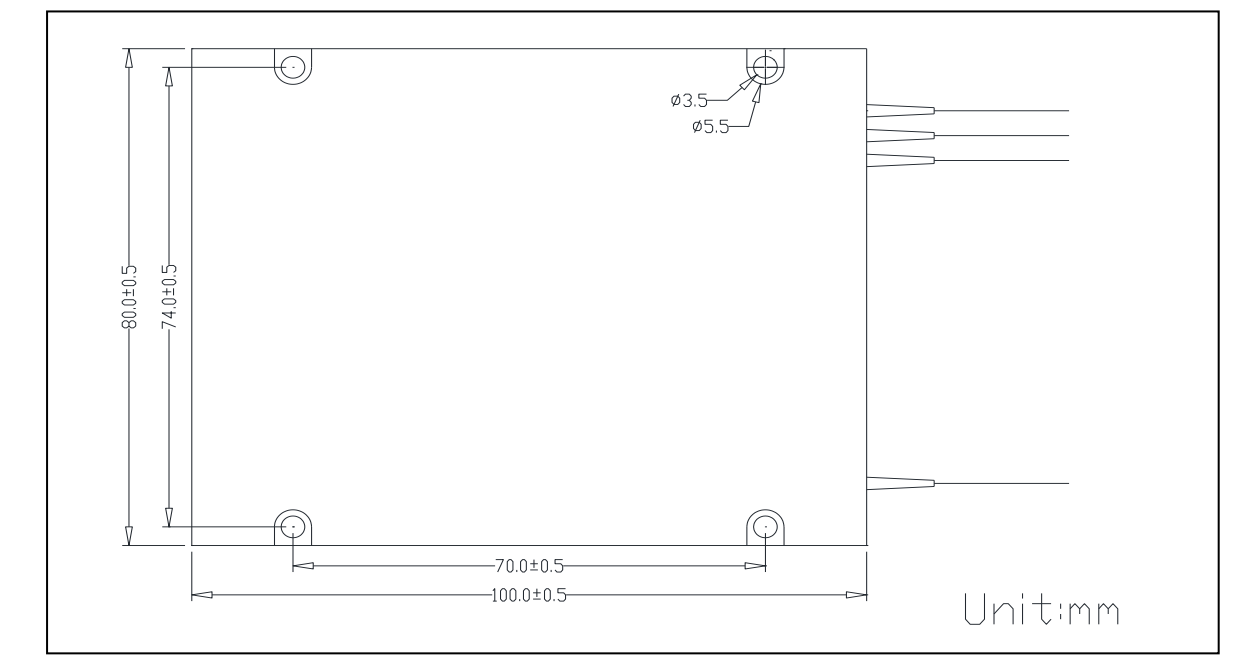

Packge Size	mm	100x80x10

Channel Number	3x1;
Wavelength	635/532/488;
Pigtail Type	250=250µm Fiber; 900=900µm Loose Tube; 2mm=2mm loose tube; 3mm=3mm Loose Tube;
Fiber Type	460HP
Length	1= 1m; X=Other;
Connector	NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others;
Package	100X80X10;
