Wavelength Division Multiplexer Coupler-532/1064nm, 635/1064nm
Wavelength Division Multiplexer Coupler-532/1064nm, 635/1064nm
Specifications
| Parameters | Unit | 532/1064 WDMC | 635/1064 WDMC | |
| 1064±5nm | Insertion Loss | dB | ≤1.4 | |
| Isolation | dB | ≥13 | ||
| 532±5nm or 635±10nm |
Insertion Loss | dB | ≤2.0 | |
| Isolation | dB | ≥12 | ||
| PDL | dB | ≤0.15 | ||
| Directivity | dB | ≥50 | ||
| Return Loss | dB | ≥50 | ||
| Handling Power | W | 1 | ||
| Operating Temperature | ℃ | -5 ~ +7 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
Package Information
| Configuration | 1x2, 2x2 | ||
| Fiber Length | 1m, others on request | ||
| Fiber Type | HI 1060 FLEX | ||
| Pigtail type | 250μm Bare Fiber | 900μm Loose Tube | 900μm/2mm/3mm Loose Tube |
| Dimensions (mm) | φ3.0x54 | φ3.0x54 | 90x16x9 |

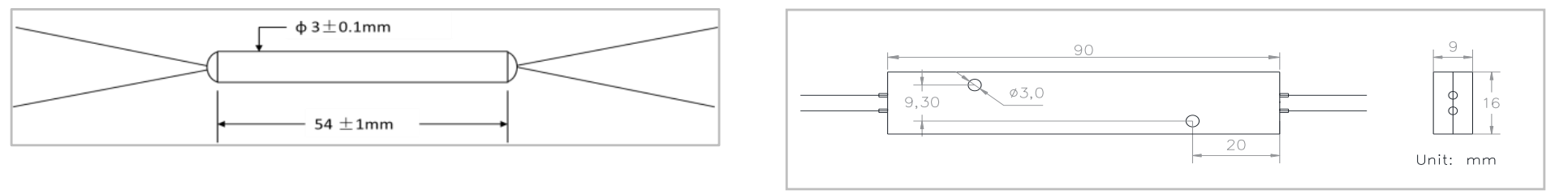

Package Dimensions
Ordering Information
| Grade | P=Grade P; |
| Wavelength | 532/1064; 635/1064; |
| Port | 1x2; 2x2; |
| Pigtail Type | 250=250µm Fiber; 900=900µm Loose Tube; 2mm=2mm loose tube; 3mm=3mm Loose Tube; |
| Fiber Type | HI1060FLEX; |
| Length | 1=1m; X=Other; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
| Package | 3x54; 90x16x9; |
