Description
Features
Low Insertion Loss & PDL
High Isolation Extincation Ratio
High stability and reliability
Application
Fiber Laser
High Power EDFA
Fiber Optical Instrument
High Power In Line Optical Isolator(1030,1040,1064nm,1-20W)
Specifications
| Parameter | Non-PM Fiber Isolator (HPIS) | PM Fiber Isolator (HPMIS) | ||
| Center wavelength (nm) | 1030,1040,1064 | |||
| Bandwidth (nm) | ±10 | |||
| Peak isolation (dB) | 32~40 | 32~40 | ||
| Isolation at 23℃(dB) | ≥ 25 | ≥ 25 | ||
| Insertion Loss at 23℃ (dB) | ≤1.2(typ.0.8) | ≤1.2(typ.0.8) | ||
| PDL (dB) | ≤0.15 | |||
| Extinction Ratio (dB) | -- | ≥20 | ||
| Return loss (Input/output) (dB) | ≥50/50 | ≥50/50 | ||
| Power handling | CW (W) | 1,2,3,5,10,15,20 or specify | ||
| Pulse Peak (Kw) | 10 or specify | |||
| Fiber Type | HI1060 or 10/125,20/125 etc LMA fiber |
PM980 or PM 10/125, PM20/125 etc LMA fiber |
||
| Operating temperature (℃) | -5 ~ +50 | |||
| Storage temperature (℃) | -20 ~ +75 | |||
| Package Dimension (mm) | 118x37x29 | |||

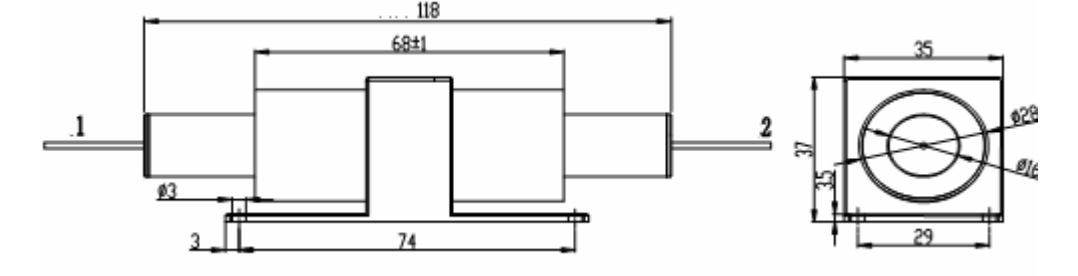

Package Dimension
| HPIS HPMIS |
Wavelength | Working Axis | Pigtail Type | Fiber Type | Length | Power | Package |
| 1030 1040 1064 |
1= Fast axis blocked 2= Slow axis working |
250=250um bare fiber 900=900um loose tube 3000=3mm loose tube |
4=HI1060 5=Panda fiber |
0.8= 0.8m | 1=1W 2=2W X=Others |
118x37x29 |
