Description
Features
Wide Operating Wavelength
High isolation
Low insertion loss
Low PDL
High stability and reliability
Application
Fiber Amplifier
Fiber sensing
Testing instruments
Polarization Insensitive Isolator(980nm)
Specifications
| Parameter | Value |
| Center wavelength (nm) | 980 |
| Bandwidth(nm) | ±10 |
| Peak isolation (dB) | 32 |
| Isolation at 23℃ (dB) | ≥25 |
| Typ.Insertion Loss at 23℃(dB) | ≤0.6 |
| Insertion Loss at 23℃(dB) | ≤1.0 |
| PDL at 23℃(dB) | ≤0.1 |
| Return loss (Input/output) (dB) | ≥50/50 |
| Power handling (mW) | ≤1000 |
| Fiber Type | HI1060 |
| Operating temperature (℃) | ~5 ~ +50 |
| Operating temperature (℃) | -5~ +50 |
| Storage temperature (℃) | -20 ~ +75 |
| Package(mm) | 118x37x35 |

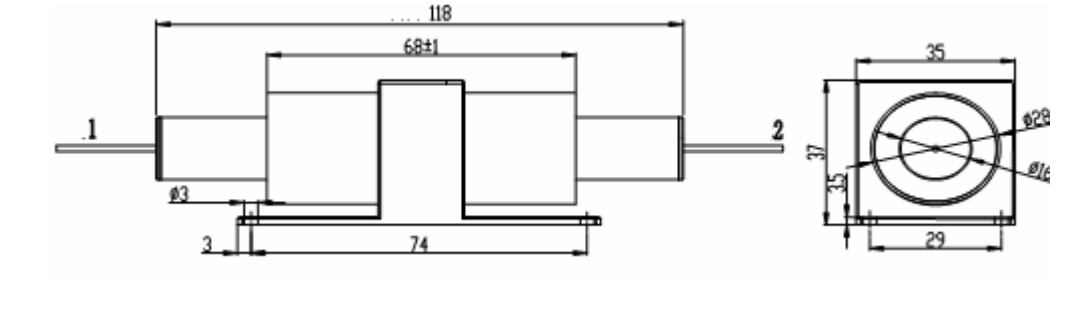

Package Dimensions
Ordering Information
| IS | Wavelength | Pigtail Type | Fiber Type | Length | Package size |
| 980 | 900=900um loose tube 3000=3mm loose tube |
4=HI1060 | 0.8= 0.8m | 56x32x32 |
