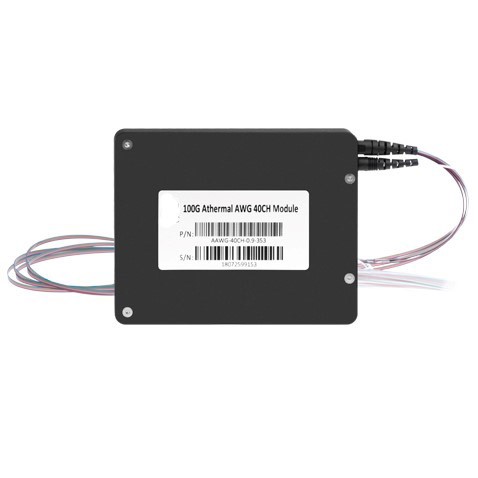

100G 40CH Athermal AWG DWDM Module (AAWG)

Description

Parameters	Unit	Values
Number of Channel	ch	40
Channel Spacing	GHz	100
Center Wavelength	nm	ITU Grid
ITU#		C21~C60
Wavelength Accuracy	nm	±0.04
0.5dB Pass Band	nm	≥0.2
1dB Pass Band	nm	≥0.4
3dB Pass Band	nm	≥0.6
20dB Pass Band	nm	≤1.2
Insertion Loss	dB	≤5.5
Ripple	dB	≤0.5
Loss Uniformity	dB	≤1.0
Adjacent Channel Isolation	dB	≥25
Non-Adjacent Channel Isolation	dB	≥30
Total Crosstalk	dB	≥22
PMD	ps	≤0.5
Chromatic Dispersion	ps/nm	±20
PDL	dB	≤0.5
Return Loss	dB	≥40
Max Optical Power Handling (CW)	mW	250

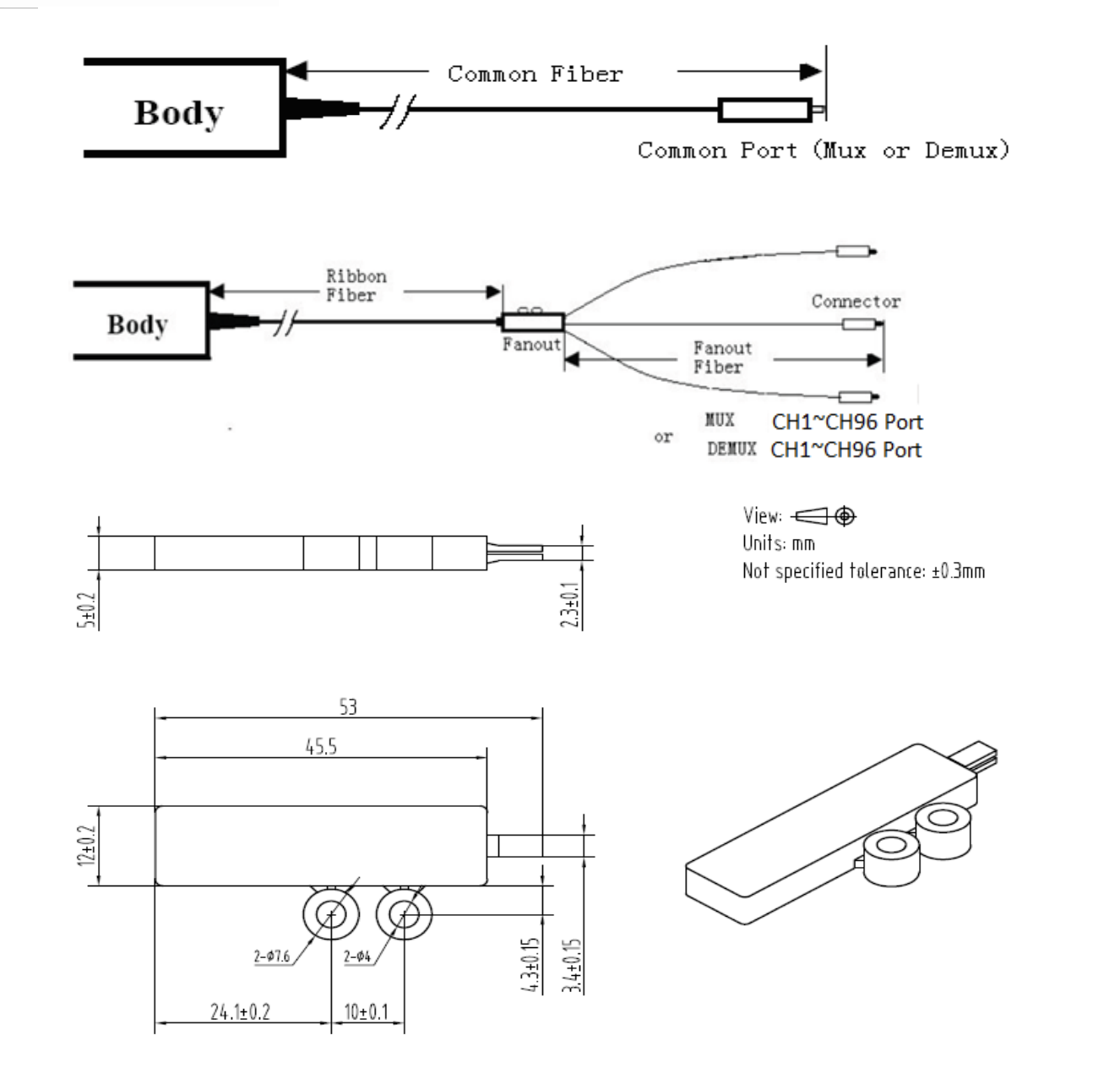

Pigtail Type @ Common		SMF-28e 900μm Loose Tube 0.5+/-0.05m
Pigtail Type @ ITU Channel Port		SMF-28e, 4×12 ribbon 0.5+/-0.05m, fanout 900μm 0.5+/-0.05m
Connector Type		SC/UPC or LC/UPC
Operation Humidity	%RH	5~85
Operating Temperature	℃	-5~+65
Storage Temperature	℃	-40~+85

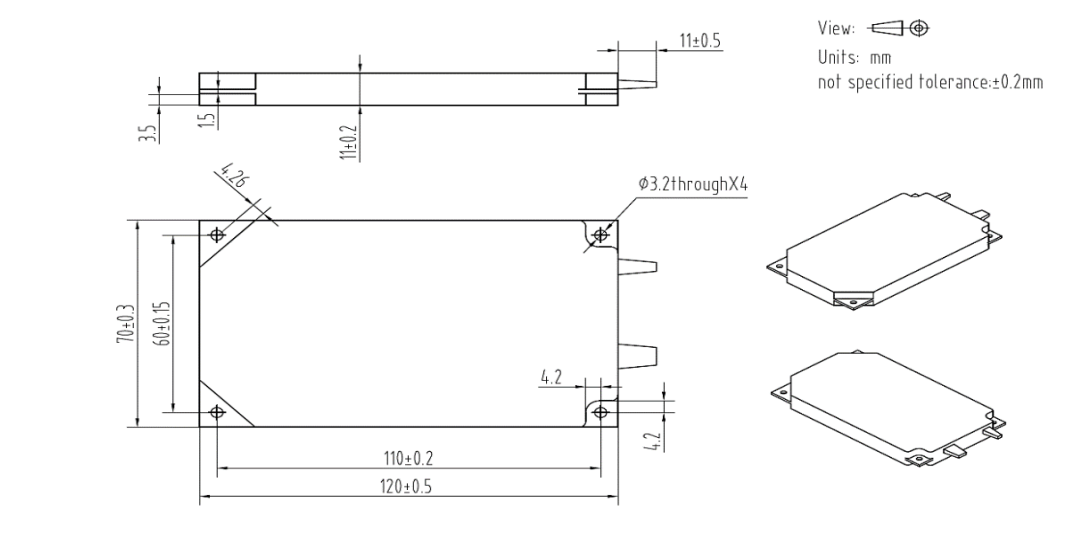

Package (mm)	mm	120x70x11

Channel Space	1=100Ghz;
Passband Profile	F=Flat Top;
Channel Number	40=40 Channel;
Start ITU Channel	C21~C60;
Pigtail Type	900=900um Loose Tube;
Length	0.5=0.5/0.5/0.5m;
Connector	NE=None; LC=LC/UPC; SC=SC/UPC; XX=Other;
