50G 96CH Athermal AWG DWDM Module (AAWG)

Description

Specifications

Parameters	Unit	Values
Number of Channel	ch	96
Channel Spacing	GHz	50
Center Wavelength	nm	ITU Grid
ITU#		C+13/C14/C+14/…/C60/C+60/C61
Wavelength Accuracy	nm	±0.05
1dB Pass Band	nm	≥0.20
3dB Pass Band	nm	≥0.28
Insertion Loss	dB	≤6.0
Ripple	dB	≤0.5
Loss Uniformity	dB	≤1.3
Adjacent Channel Isolation	dB	≥30
Total Cross-Talk	dB	≥20
PMD	ps	≤1.0
Chromatic Dispersion(CD)	ps/nm	±20
PDL	dB	≤0.5
Return Loss	dB	≥45
Max Optical Power Handling	mW	500
PDL	dB	≤0.5

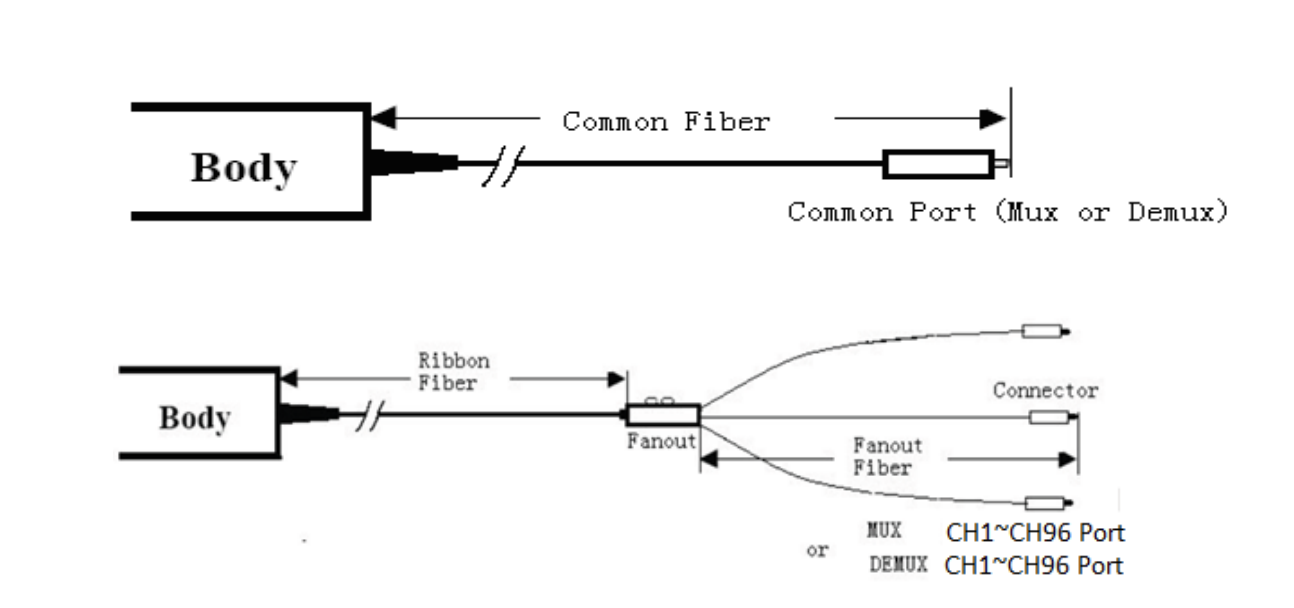

Pigtail Type @ Common		SMF-28e 900μm Loose Tube 0.5+/-0.05m
Pigtail Type @ ITU Channel Port		SMF-28e, 8×12 ribbon 0.5+/-0.05m, fanout 900μm 0.5+/-0.05m
Connector Type		SC/UPC or LC/UPC
Operation Humidity	%RH	5~85
Connector Type		SC/UPC or LC/UPC
Operation Humidity	%RH	5~85
Operating Temperature	℃	-5~+65
Storage Temperature	℃	-40~+85

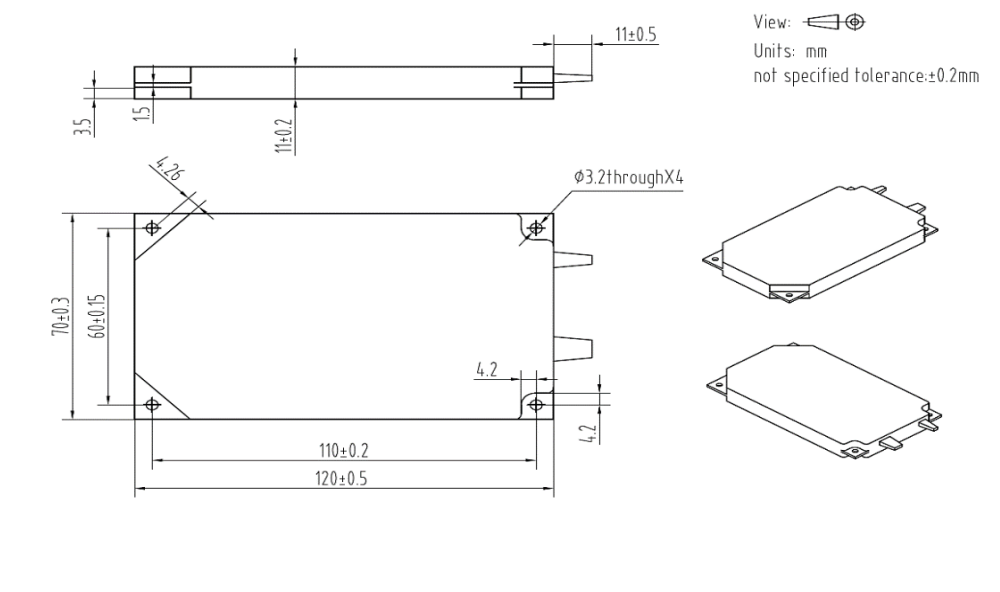

Package (mm)	mm	120x70x11

Package Dimensions

Channel Table

No	Channel	f(Ghz)	λ (nm)	No	Channel	f(Ghz)	λ (nm)	No	Channel	f(Ghz)	λ (nm)
1	C+13	191350	1566.72	33	C+29	192950	1553.73	65	C+45	194550	1540.95
2	C14	191400	1566.31	34	C30	193000	1553.33	66	C46	194600	1540.56
3	C+14	191450	1565.90	35	C+30	193050	1552.93	67	C+46	194650	1540.16
4	C15	191500	1565.50	36	C31	193100	1552.52	68	C47	194700	1539.77
5	C+15	191550	1565.09	37	C+31	193150	1552.12	69	C+47	194750	1539.37
6	C16	191600	1564.68	38	C32	193200	1551.72	70	C48	194800	1538.98
7	C+16	191650	1564.27	39	C+32	193250	1551.32	71	C+48	194850	1538.58
8	C17	191700	1563.86	40	C33	193300	1550.92	72	C49	194900	1538.19
9	C+17	191750	1563.45	41	C+33	193350	1550.52	73	C+49	194950	1537.79
10	C18	191800	1563.05	42	C34	193400	1550.12	74	C50	195000	1537.40
11	C+18	191850	1562.64	43	C+34	193450	1549.72	75	C+50	195050	1537.00
12	C19	191900	1562.23	44	C35	193500	1549.32	76	C51	195100	1536.61
13	C+19	191950	1561.83	45	C+35	193550	1548.91	77	C+51	195150	1536.22
14	C20	192000	1561.42	46	C36	193600	1548.51	78	C52	195200	1535.82
15	C+20	192050	1561.01	47	C+36	193650	1548.11	79	C+52	195250	1535.43
16	C21	192100	1560.61	48	C37	193700	1547.72	80	C53	195300	1535.04
17	C+21	192150	1560.20	49	C+37	193750	1547.32	81	C+53	195350	1534.64
18	C22	192200	1559.79	50	C38	193800	1546.92	82	C54	195400	1534.25
19	C+22	192250	1559.39	51	C+38	193850	1546.52	83	C+54	195450	1533.86
20	C23	192300	1558.98	52	C39	193900	1546.12	84	C55	195500	1533.47
21	C+23	192350	1558.58	53	C+39	193950	1545.72	85	C+55	195550	1533.07
22	C24	192400	1558.17	54	C40	194000	1545.32	86	C56	195600	1532.68
23	C+24	192450	1557.77	55	C+40	194050	1544.92	87	C+56	195650	1532.29
24	C25	192500	1557.36	56	C41	194100	1544.53	88	C57	195700	1531.90
25	C+25	192550	1556.96	57	C+41	194150	1544.13	89	C+57	195750	1531.51
26	C26	192600	1556.55	58	C42	194200	1543.73	90	C58	195800	1531.12
27	C+26	192650	1556.15	59	C+42	194250	1543.33	91	C+58	195850	1530.72
28	C27	192700	1555.75	60	C43	194300	1542.94	92	C59	195900	1530.33
29	C+27	192750	1555.34	61	C+43	194350	1542.54	93	C+59	195950	1529.94
30	C28	192800	1554.94	62	C44	194400	1542.14	94	C60	196000	1529.55
31	C+28	192850	1554.54	63	C+44	194450	1541.75	95	C+60	196050	1529.16
32	C29	192900	1554.13	64	C45	194500	1541.35	96	C61	196100	1528.77

Ordering Information

Channel Space	1=100Ghz;
Passband Profile	F=Flat Top;
Channel Number	40=40 Channel;
Start ITU Channel	C21~C60;
Pigtail Type	900=900um Loose Tube;
Length	0.5=0.5/0.5/0.5m;
Connector	NE=None; LC=LC/UPC; SC=SC/UPC; XX=Other;
