Description
Features
Low Insertion Loss
Compact Size
Environmental Stability
Applications
Fiber Instruments
Fiber Sensor
PM Fiber Mirror Reflector
Specifications
| Parameters | Unit | Values | |
| Operating Wavelength | nm | 1550 | 1064 |
| Reflection Percentage | % | ≥90 | |
| Insertion Loss | dB | ≤0.7 (Typ. 0.5) | ≤0.8 (Typ. 0.6) |
| PER at 23℃ | dB | ≥20 | |
| Power Handling | mW | ≤500 | |
| Fiber Type | PM 1550 Panda Fiber | PM 980 Panda Fiber | |
| Operating Temperature | ℃ | -5 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Dimensions* | mm | φ5.5×35; φ3.5×15 | |
* Smaller package avaliable upon request.

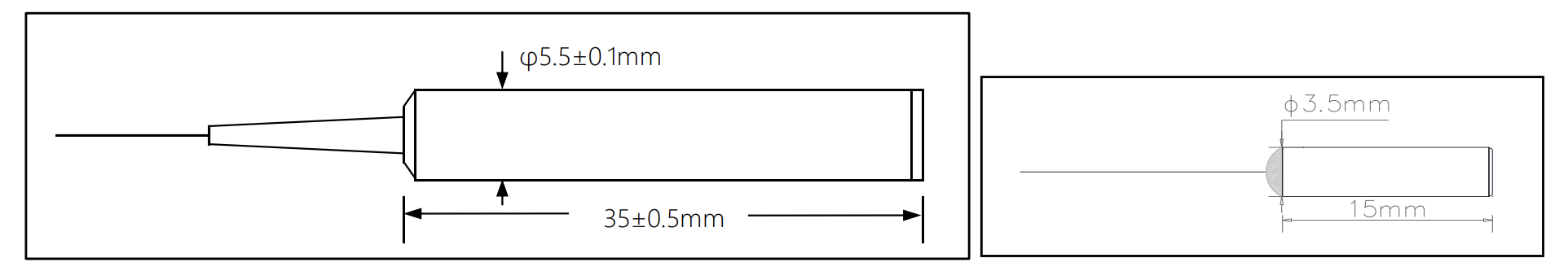

Package Dimensions
Ordering Information
| Wavelength | 1550; 1064; |
| Reflection | 90%=≥90%; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | 5=PM Fiber; |
| Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other; |
| Package Size | 5.5x35; 3.5x15; |
