Description
Features
Fine polishing surface,
Accurate polishing angle
High extinction ratio
High Reliability
Applications
PM micro component
PM Pigtail
Specifications
| Parameter | Single Fiber | Dual Fiber |
| Center Wavelength(nm) | 850,980,1060,1310, 1550 | |
| Capillary Diameter(mm) | 1.8 | |
| Diameter Tolerance (mm) | ± 0.005 | |
| Capillary Length (mm) | 4.75 ± 0.25 | 5.75 ± 0.25 |
| Polishing Angle (degree) | 8° or specify | |
| Fiber Type Combination | PM Fiber & PM Fiber, PM Fiber & SMF-28 | |
| Extinction Ratio (dB) | ≥23 | |
| Scratch/Dig | 10/5 | |
| AR-coating | R < 0.25% @ specified wavelength range | |

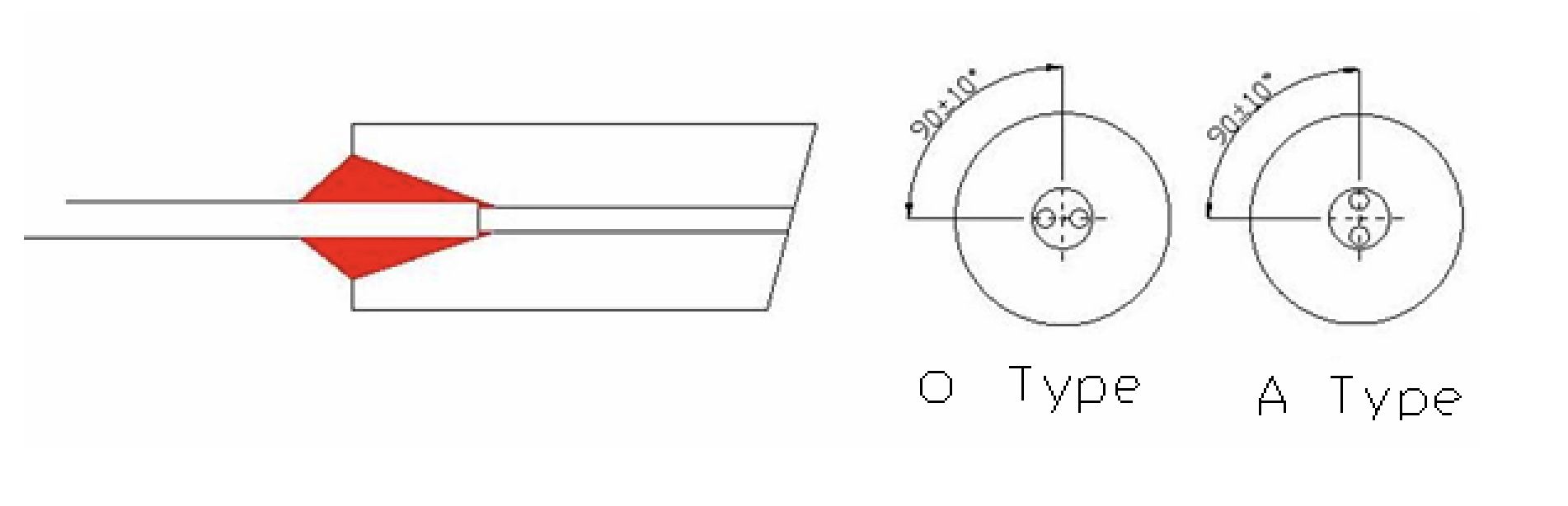

Fiber Orientation
Ordering Information
| PMFP | Type | Capillary Diameter | AR Coating | Polishing Angle | Pigtail Type | Fiber Type | Fiber Orientation | Length |
| S= Single fiber pigtail D = Dual Fiber pigtail |
1.8=1.8mm | 850 980 1064 1310 1550 |
8=8° X=Specify |
250=250um bare fiber |
5=Panda fiber | O=O Type A= A Type |
1= 1m X=other |
