Description
Features
Low Insertion Loss
Compact Size, Integrated Device
Customized Tap Ratio Available
RoHS Compliant
Applications
WDM Channel Monitoring
Gain Monitoring for Amplifier
Optical Network Switch
Protection Monitoring
PMF Tap-PD Monitor
Specifications
| Parameters | Unit | Values | ||
| Operating Wavelength | nm | 1260~1620 | ||
| Tap ratio | 1% | 3% | 5% | |
| Responsibility | mA/W | 8 | 25 | 40 |
| Insertion Loss | dB | 0.35 | ||
| WDL | dB | ≤0.3 | ||
| Dark Current | nA | ≤5.0 (1.0 Typical) | ||
| Reverse Voltage | V | ≤20 | ||
| Forward Current | mA | ≤10 | ||
| PER | dB | ≥20 | ||
| TDL | dB | ≤0.3 | ||
| PMD | ps | ≤0.2 | ||
| Return Loss | dB | ≥45 | ||
| Fiber Type | PMF1550 | |||
| Operating Temperature | ℃ | -10 ~ +70 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
| Input Power | mW | ≤500 | ||
| Dimensions | mm | Ф5.5XL18.4; Ф3.0XL20 | ||

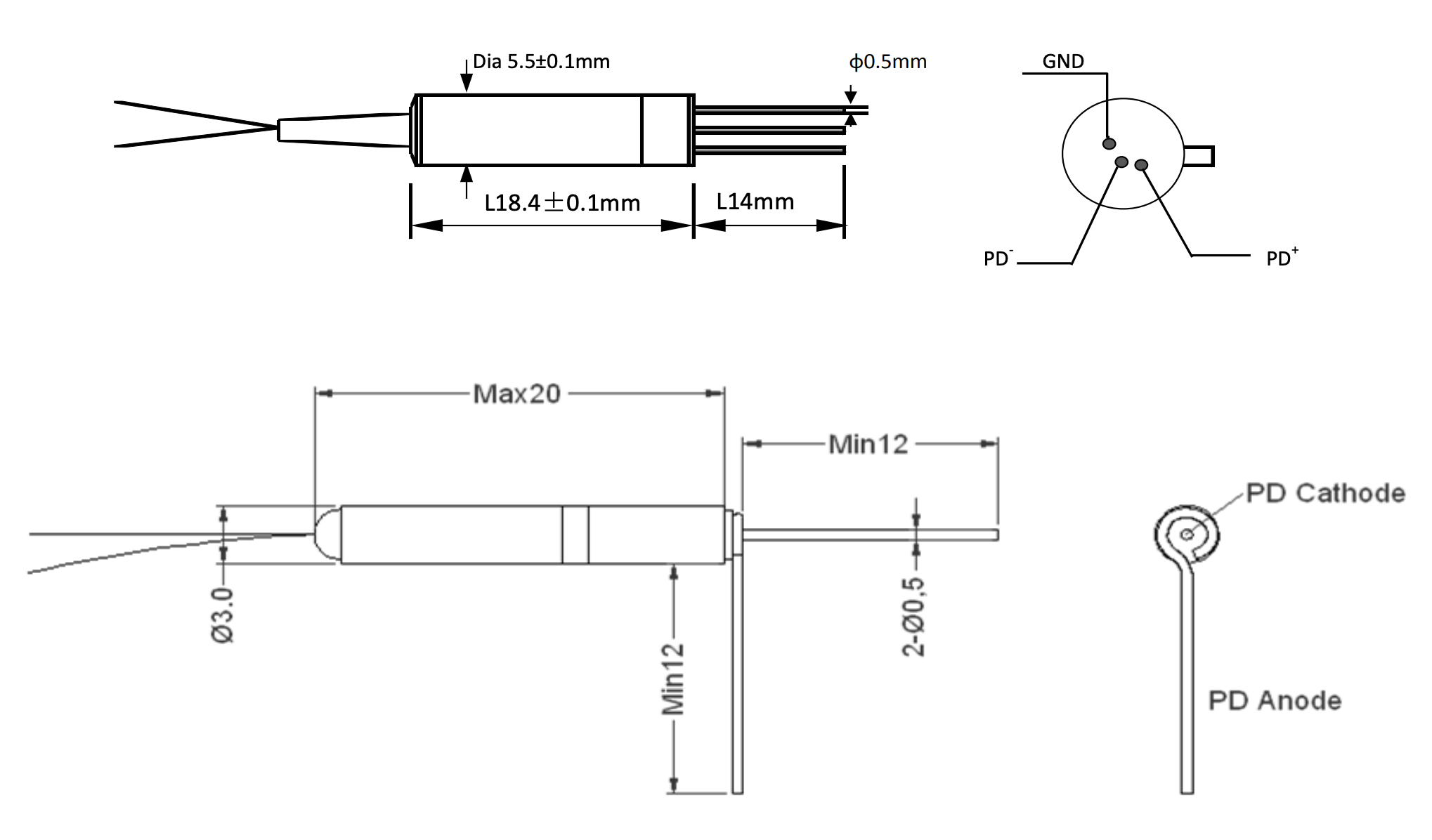

Package Dimensions
Ordering Information
| Wavelength | 1310; 1550; 1310/1550; |
| Tap Ratio | 1=1%; 3=3%; 5=5%; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | 5=PMF1550; |
| Fiber Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; LC=LC/UPC; XX=Others; |
| Package Size | 5.5X18.4; 3.0X20 |
