Description
Features
Low Insertion Loss
High Extinction Ratio
High Stability and Reliability
Application
EDFA & Raman Amplifier
Fiber Sensor
Coherent Telecommunication Systems
Polarization Mode Dispersion Compensator
1×2 Polarization Beam Combiner /Splitter(PBS/PBC)-80μm PMF
Specifications
| Parameters | Unit | Grade P | Grade A | |
| Operating Wavelength | nm | 1310, 1450,1480, 1550 | 980, 1064 | |
| Operating Bandwidth | nm | ±40 | ±20 | |
| Typ. Insertion Loss | dB | 0.7 | 0.9 | |
| Insertion Loss (dB) | dB | ≤0.90 | ≤1.10 | |
| Extinction Ratio (only for PBS) | dB | ≥19 | ≥19 | |
| Directivity | dB | ≥50 | ||
| Return Loss | dB | ≥50 | ||
| Power Handling | mW | ≤300 | ||
| Fiber Type | Port 1&2 | 80/165um Bare Panda Fiber | ||
| Port 3 | RC SMF-28 or RC HI1060 or RC PM Panda Fiber | |||
| Fiber Length | m | 0.8 | ||
| Operating Temperature | ℃ | -5~+70 | ||
| Storage Temperature | ℃ | -40 ~ +80 | ||
| Dimensions | mm | φ5.5×L35 | ||

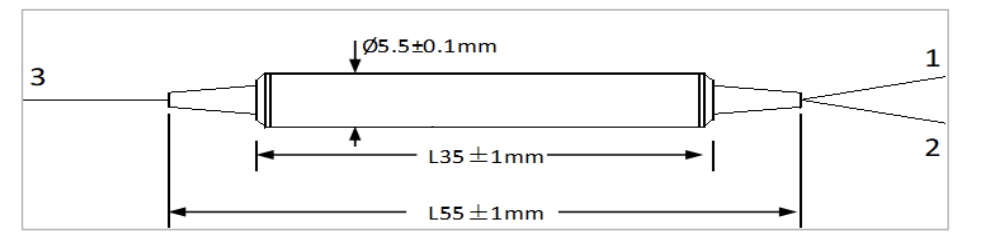

Package Dimensions
Ordering Information
| Port | 1x2; |
| Grade | P=Grade P; |
| Wavelength | 1064; 1310; 1450; 1480; 1550; 980; |
| Pigtail Type | 165=165μm Fiber; |
| Fiber Type @ Port3 | 1=RC SMF-28; 2=RC HI1060; 3=RC PMF,Slow Axis Align to Port1; 4=RC PMF, Slow Axis Align 45° to Port1; |
| Length | 0.8=0.8m; |
| Connector | NE=None; |
