Description
Features
Low Insertion Loss
Compact Size
Environmental Stability
Application
Fiber Instruments
Fiber Sensor
RC80 Mini Size Isolator
Specifications
| Parameters | Unit | Single Stage | Dual Stage |
| Operating Wavelength | nm | 1550 | |
| Operating Bandwidth | nm | ±20 | |
| Peak isolation | dB | 38 | 48 |
| Isolation (at 23℃) | dB | ≥28 | ≥40 |
| Max Insertion Loss | dB | 0.8 | 1.0 |
| PMD | ps | ≤0.2 | ≤0.1 |
| PDL | dB | ≤0.10 | |
| Return Loss | dB | ≥55/55 | |
| Power Handling | mW | ≤500 | |
| Fiber Type | RC80 SM1550 | ||
| Operating Temperature | ℃ | -5 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Dimensions* | ℃ | φ3x25 | |

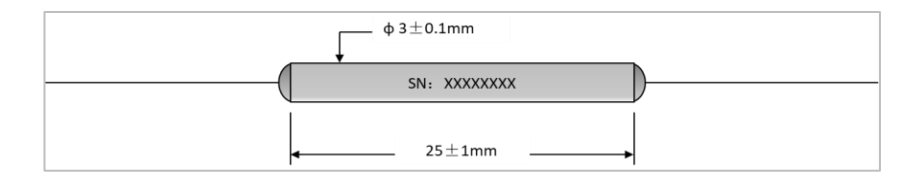

Package Dimensions
Ordering Information
| Type | S=Single Stage; D=Dual Stage; |
| Grade | P=P Grade; |
| Wavelength | 1550; |
| Pigtail Type | 170=170μm; |
| Fiber Type | 6=RC80 SM1550; |
| Length | 1=1m |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other; |
| Package Size | 3x25; |
