Description
Features
Low IL & Low PDL
Mini Size
High Isolation
High stability and reliability
Application
Fiber Sensor
Testing instruments

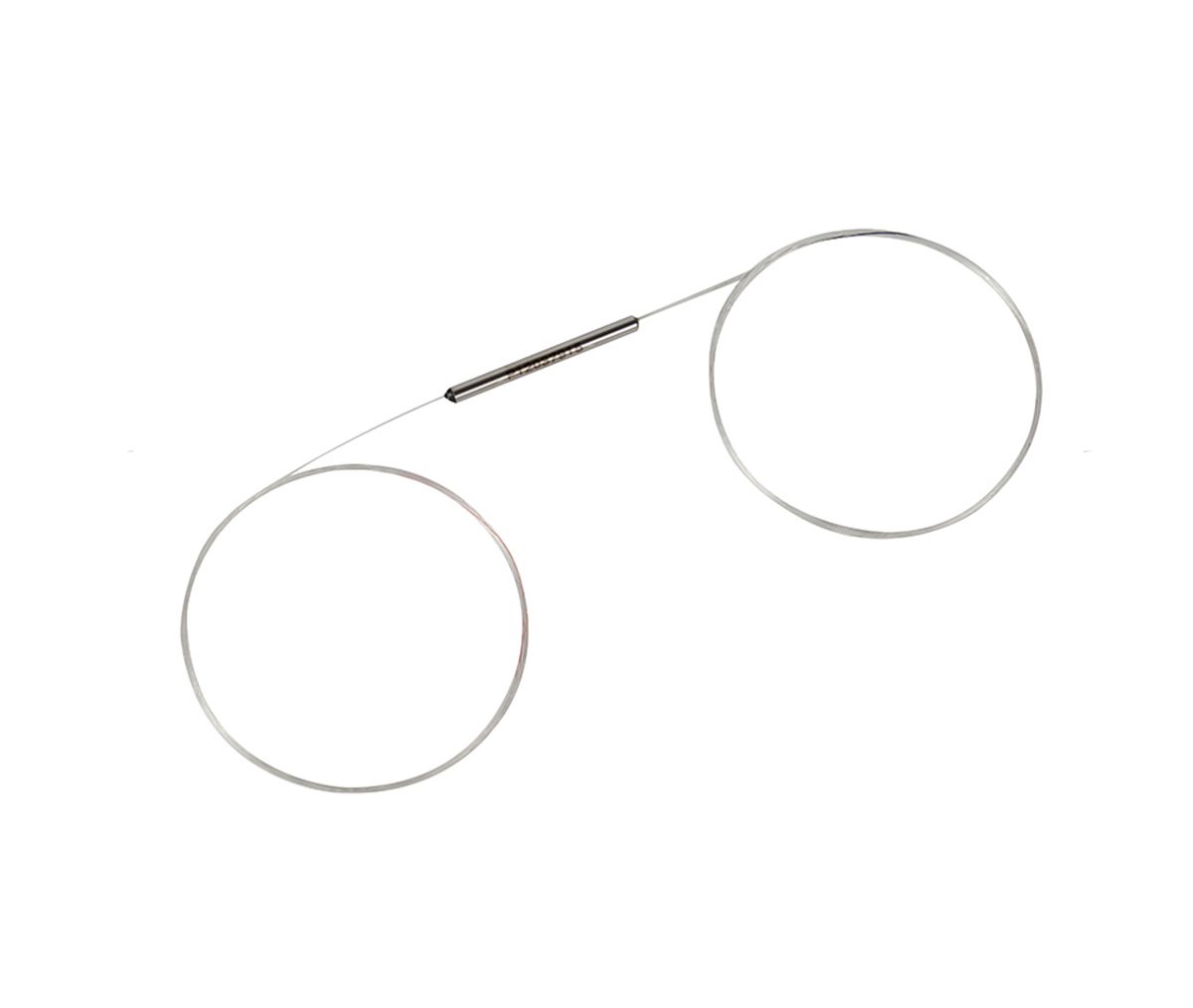

RC80 Mini Size WDM Coupler(980/1550nm)
Specifications
| Parameter / Type | 980/1550 WDMC | |
| Operating wavelength (nm) | 980 and 1550 | |
| Operating bandwidth (nm) | ±10/20 | |
| Grade | P | A |
| Insertion loss (dB) | ≤0.25 | ≤0.35 |
| Isolation (dB) | ≥20 | ≥18 |
| PDL (dB) | ≤0.05 | ≤0.1 |
| Directivity (dB) | ≥55 | |
| Operating temperature (℃) | -40 ~ +85 | |
Package Information
| Configuration | 1x2 or 2x2 |
| Pigtail length | 0.8 meter, others on request |
| Fiber Type | RC80, SM980 |
| Pigtail type | 170um bare fiber |
| Package dimension (φ×L) (mm) |
φ2.4×25; φ3.0×30; φ3.0×35; φ3.0×40; |
Ordering Information
| WDMC | Grade | Port | Wavelength | Pigtail Type | Fiber Type | Length | Package |
| P A |
1x2 2x2 |
980/1550 | 170=170um bare fiber |
6=RC80 SM980 |
0.8= 0.8m X:other |
2.4x25 3.0x30 3.0x35 3.0x40 |
