Description
Features
Low Insertion Loss
High Extinction Ratio
High Isolation
High stability and reliability
Application
Fiber Sensor
Fiber Optical Instrument

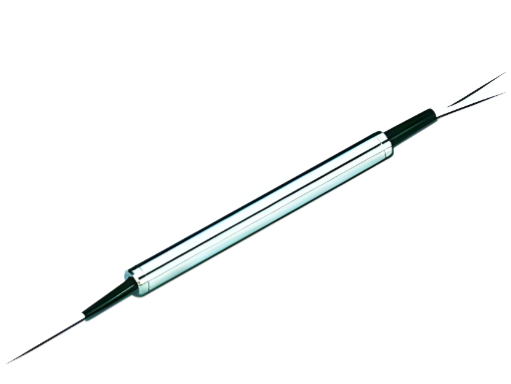

RC80 PM Fiber Optical Circulator
Specifications
| Parameter / Type | Type A | Type B |
| Operating wavelength (nm) | 1550 | |
| Bandwidth (nm) | ±30 | ±20 |
| Typ. Isolation (dB) | 46 | 20 |
| Isolation (dB) | ≥40 | ≥30 |
| Typ. Insertion Loss (dB) | 0.7 | 0.6 |
| Insertion Loss (dB) | ≤0.9 | ≤0.8 |
| Extinction Ratio (dB) | ≥22 | ≥20 |
| Cross Talk (dB) | ≥50 | |
| Return loss (dB) | ≥50 | |
| Power handling (mW) | ≤500 | |
| Fiber Type | RC80, PM1550 | |
| Fiber Length (m) | 0.80 | |
| Operating temperature (℃) | -5 ~ +70 | |
| Storage temperature (℃) | -40 ~ +85 | |
| Dimensions (mm) | φ5.5×35 | |

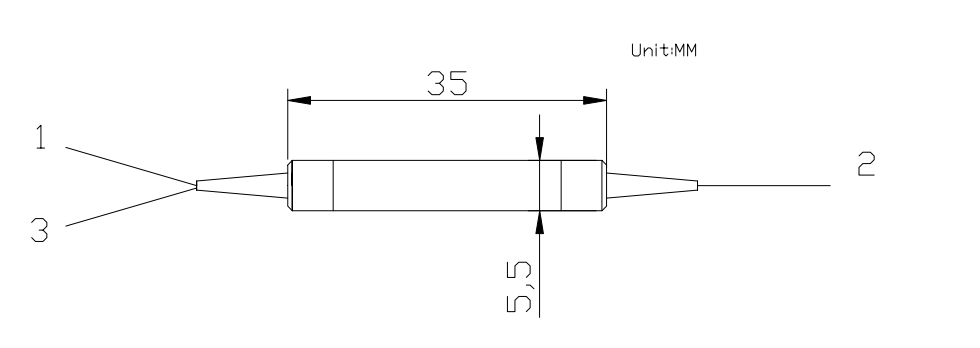

Package Dimensions
Ordering Information
| PMCIR | Port | Type | Wavelength | Pigtail Type | Fiber Type | Length | Package |
| 3=3 Port | A B |
1550 | 170=170um bare fiber | 6=RC80,PM1550 | 0.8= 0.8m | φ5.5×35 |
