Description
Features
Low Insertion Loss
High Extinction Ratio
High Isolation
High stability and reliability
Application
Fiber Optical Instrument
Fiber Sensor

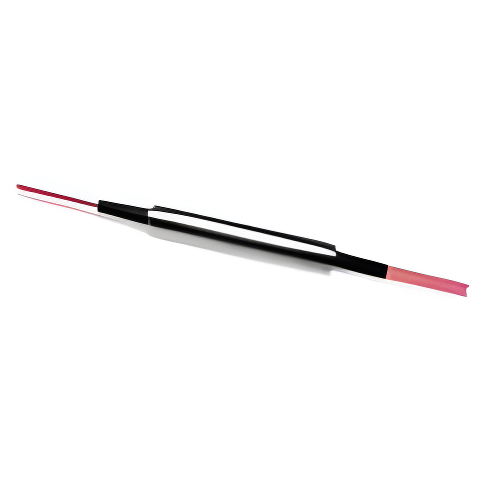

RC80 PM Fiber Optical Isolator
Specifications
| Parameter / Type | Single Grade | Dual Grade | |||
| P | A | P | A | ||
| Operating wavelength (nm) | 1550 | ||||
| Bandwidth (nm) | ±20 | ||||
| Peak isolation (dB) | 40 | 38 | 52 | 50 | |
| Isolation (dB) | ≥28 | ≥26 | ≥42 | ≥40 | |
| Typ. Insertion Loss (at 23℃) | 0.4 | 0.5 | 0.5 | 0.6 | |
| Insertion Loss (at 23℃) | ≤0.6 | ≤0.7 | ≤0.7 | ≤0.9 | |
| Extinction Ratio (dB) |
Type 2 (Both of axis working) |
≥20 | ≥18 | ≥20 | ≥18 |
| Type 1 (Fast axis blocked) |
≥22 | ≥20 | ≥22 | ≥20 | |
| Return loss (Input/Output) (dB) | ≥55 | ||||
| Power handling (mW) | ≤300 | ||||
| Fiber Type | RC80, PM1550 | ||||
| Operating temperature (℃) | -5~+70 | ||||
| Storage temperature (℃) | -40 ~ +80 | ||||
| Dimensions (mm) | φ5.5×L35 or 3x25 | ||||

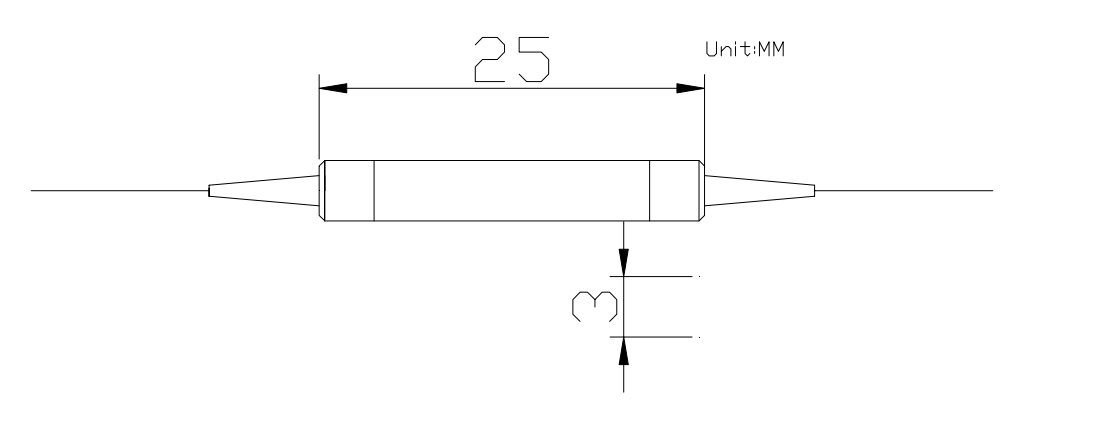

Package Dimensions
Ordering Information
| PMIS | Type | Grade | Wavelength | Axis Alignment | Pigtail Type | Fiber Type | Length | Package |
| S= Single Stage D = Dual Stage |
P A |
1550 | 1=Fast Axis Blocked 2=Both Axis Working |
170=170um bare fiber |
6=RC PM 1550 |
0.8= 0.8m |
5.5x35 3x25 |
