Description
Features
Low Insertion Loss
High Channel Isolation
High stability and reliability
Epoxy Free Optical Path
Application
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV Fiberoptic System
100Ghz DWDM device
Specifications
| Parameters | 1x2 100Ghz DWDM | |
| Channel Wavelength (nm) | 1529.55~1561.42 (ITU 20~ 60) | |
| Center Wavelength Accuracy (nm) | ± 0.05 | |
| Channel Passband (@-0.5dB bandwidth) (nm) | > 0.22 | |
| Insertion Loss (dB) | Add / Drop Ch. | < 1.0 |
| Express Ch. | < 0.4 | |
| Channel Ripple (dB) | < 0.4 | |
| Isolation(dB) | Adjacent | > 25 |
| Non-adjacent Ch | > 35 | |
| Express Channel Isolation (dB) | > 10 | |
| Insertion Loss Temperature Sensitivity (dB/°C ) | < 0.003 | |
| Wavelength Temperature Shifting (nm/°C ) | < 0.002 | |
| Polarization Dependent Loss (dB) | ≤ 0.10 | |
| Polarization Mode Dispersion (ps) | ≤ 0.1 | |
| Directivity (dB) | ≥ 50 | |
| Return Loss (dB) | ≥45 | |
| Power Handling (mW) | ≤300 | |
| Operating Temperature (°C) | 0 ~ +70 | |
| Storage Temperature (°C) | -40 ~ +85 | |
| Package Dimension (mm) | Ø5.5 x L35 | |

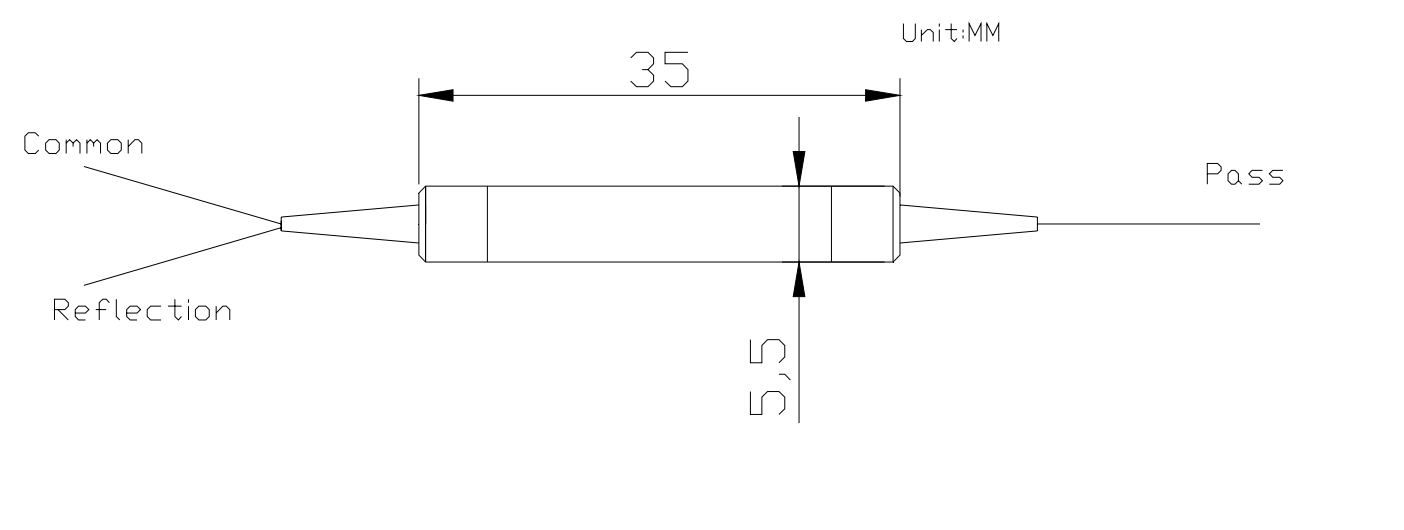

Package Dimensions
Ordering Information:
| DWDM | Channel Type | Spacing | ITU Channel | Pigtail Type | Fiber Type | Length | Connector |
| 1=1ch | 1=100Ghz | 21=21ch 22=22ch …… 60=60ch |
250=250um bare fiber 900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
1=SMF28e | 1= 1m X=Specify | NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other |
