·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
| Parameters | Unit | SM/MM | |
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
| Insertion Loss | dB | Typ: 1.0 Max: 1.5 | |
| Return Loss | dB | MM ≥ 30 SM ≥ 50 | |
| Cross Talk | dB | MM ≥ 35 SM ≥ 55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Operating Voltage | V | 3.0 or 5.0 | |
| Durability | Cycles | ≥ 10 Million | |
| Switching Time | ms | ≤8 | |
| Optical Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Relative Humidity | % | 5 ~ 95 | |
| Weight | g | 14 | |

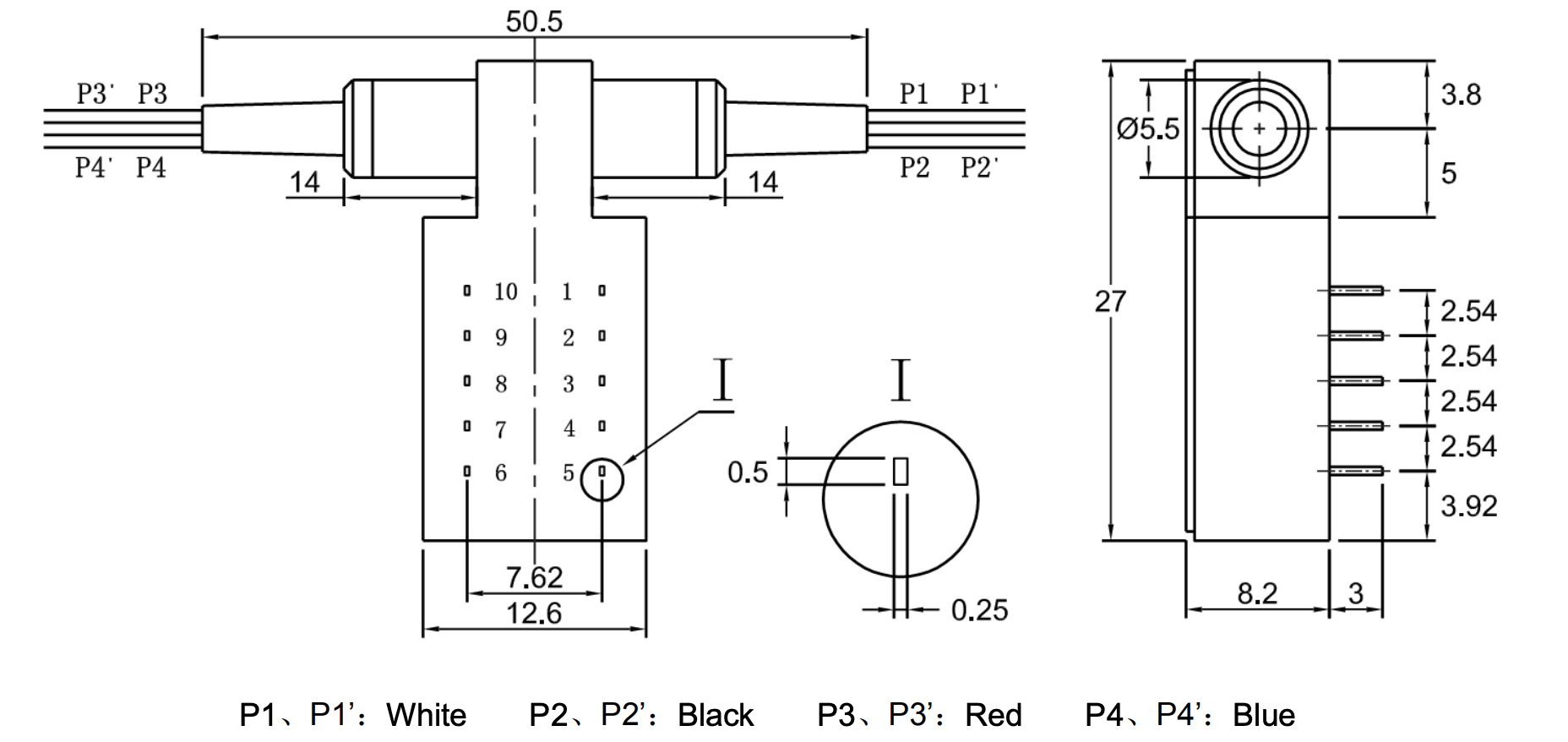

| Dimension | mm | (L)27.0×(W)12.6×(H)8.2 ±0.2 | |

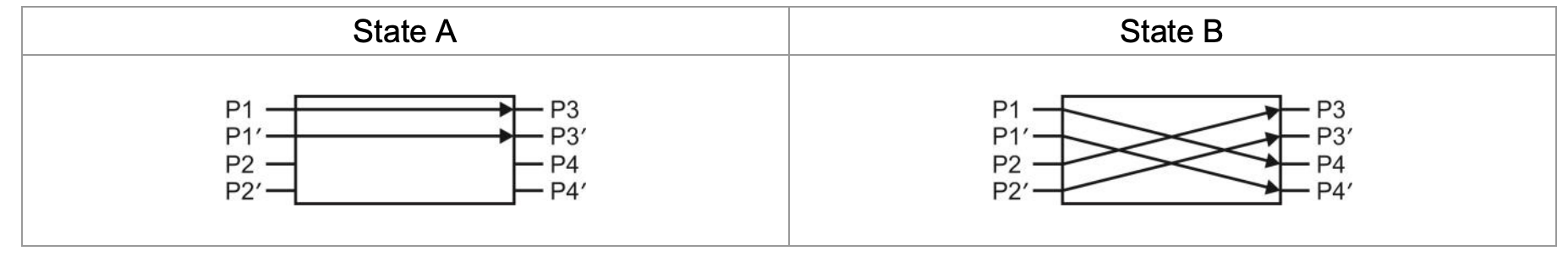

| Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
| D2×2B | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
| Latching | A | P1-P3 / P1’-P3’ | -- | -- | GND | V+ | Close | Open | Open | Close |
| B | P1-P4， P2-P3 / P1’-P4’，P2’-P3’ | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | A | P1-P3 / P1’-P3’ | -- | -- | -- | -- | Close | Open | Open | Close |
| B | P1-P4， P2-P3 / P1’-P4’，P2’-P3’ | V+ | -- | -- | GND | Open | Close | Close | Open | |
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 V | 36~44 mA | 125 Ω |
| 5V non-latching | 4.5~5.5 V | 26~32 mA | 175 Ω |
| 3V latching | 2.7~3.3 V | 54~66 mA | 50 Ω |
| 3V non-latching | 2.7~3.3 V | 39~47 mA | 70 Ω |
| DBSW | Port Type | Operating Voltage | Wavelength | Mode | Pigtail Type | Fiber Type | Length | Connector |
| 2X2 | 3V 5V |
1550 1310 850 |
N=Non-Latching L=Latching |
900=900um loose tube |
1=SMF-28e 2=50/125 3=62.5/125 |
1=1.0m | NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC LC=LC/UPC XX: Specify |
